GNS-2501

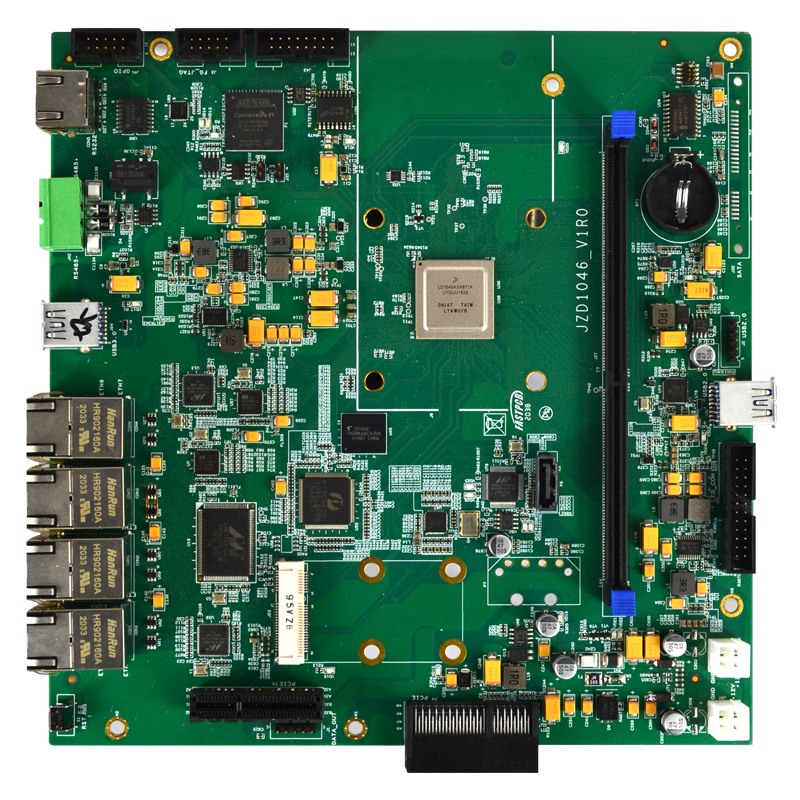

基于NXP LS1046A高性能64位ARM四核处理器的网安主板

产品型录

产品介绍
产品规格
档案下载

基于NXP LS1046A高性能64位ARM四核处理器的网安主板

主要特点

◆ NXP QorlQ LS1046A，Arm Cortex A72 4核1.8GHz

◆ 8个千兆RJ45网口，预留网口指示灯插针

◆ QSPI NOR FLASH，1GB NAND FLASH， 8GBEMMC及SATA接口

◆ IRIG-B接口，对时精度不大于 1ms

CPU	NXP QorlQ LS1046A，Arm Cortex A72 4核1.8GHz
内存	1 x UDIMM DDR4 2133MHz，可支持16GB
扩展接口	支持1个PCIe x1 (Gen1/2/3)mini插槽
扩展接口	2个PCIe x1 (Gen1/2/3)标准插槽，x4形态
网络接口	8个千兆网口，RJ45连接器
网络接口	PHY： Marvell 88E1112-C2-NNC1I000
SATA	2个SATA接口，其中1个7+15PIN接口
Flash	1GB NAND FLASH， 8GB EMMC
USB	3个USB3.0，其中1个海岸线出，另2个预留插针接口
串口	1个RJ45接口，预留1个RS232接口
SPI	预留1组SPI总线接口
D0	2路D0接口，4PIN端子
IRIG-B	1个IRIG-B接口，2Pin端子
电源	冗余电源，4PIN 12V输入
工作环境	工作温度：-20℃～60℃
	存储温度：-40℃~ 80℃
	工作湿度：5~95%，不凝结
