AHPC-1211

支持Intel® Bay Trail、Gemini lake、Elkhart Lake、6代 Sky Lake &7代Kaby Lake、8代 Whiskeylake &10代 Cometlake-U处理器

支持SO-DIMM 、支持M-SATA、 M.2 Sata、 M.2 NVME存储

标配12.1吋高清显示屏，电阻式触摸屏，支持双显

标配双网口，部分配置支持Intel加密TPM2.0，支持8*GPIO

支持1*Mini-PCIE(for WIFI)、1*SIM，支持3G、4G、5G模块

产品型录

产品介绍
产品规格
档案下载

支持Intel® Bay Trail、Gemini lake、Elkhart Lake、6代 Sky Lake &7代Kaby Lake、8代 Whiskeylake &10代 Cometlake-U处理器

支持SO-DIMM 、支持M-SATA、 M.2 Sata、 M.2 NVME存储

标配12.1吋高清显示屏，电阻式触摸屏，支持双显

标配双网口，部分配置支持Intel加密TPM2.0，支持8*GPIO

支持1*Mini-PCIE(for WIFI)、1*SIM，支持3G、4G、5G模块

处理器	Baytrail	Gemini Lake	Elkhart Lake
BIOS	AMI BIOS	AMI BIOS	AMI BIOS
芯片组	Intel® SOC	Intel® SOC	Intel® SOC
图型显示	Intel® HD Graphics核显	Intel® HD Graphics核显	Intel® Graphics核显
网络	2*Intel 82583V	2*RLT8111H/8111G	2*Intel I226-V千兆网卡
音效	Realtek ALC662HD	Realtek ALC662HD	Realtek ALC269HD
内存	DDR3L 1333MHz Max 8G	DDR4 2400MHz Max 16G	DDR4 3200MHz Max 16G
硬盘	M-SATA 128G	M.2 2280 Sata 128GB	M.2 2280 NVME128GB
功能	支持WiFi、蓝牙、4G、看门狗，支持无盘启动、网络唤醒、上电开机	支持WiFi、蓝牙、4G、看门狗，支持无盘启动、网络唤醒、上电开机	支持WiFi、蓝牙、4G、看门狗，支持无盘启动、网络唤醒、上电开机

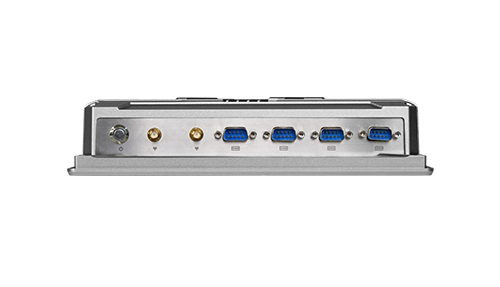

前I/O接口	1开关 2天线 4*COM	1开关 2天线 4*COM	1开关 2天线 4*COM
后I/O接口	1Audio接口 2LAN 接口 1USB2.0接口 1USB3.0接口 1HDMI接口 1VGA接口 1DC IN接口 4USB 接口 1*M3接地螺孔	1Audio接口 1DP接口 1HDMI接口 4USB3.2接口 2LAN 接口 1DC IN接口 4USB接口 1M3接地螺孔 1CMOS按键支持8GPIO	1Audio接口 1DP接口 1HDMI接口 1USB2.0接口 3USB3.1接口 2LAN 接口 1DC IN接口 4USB接口 1M3接地螺孔 1CMOS按键支持8*GPIO
电源	DC 9V~24V 宽压输入	DC12V -24V 宽压输入	DC 9V~24V 宽压输入
操作系统	Windows 7 / Windows 10 / Linux
产品认证	CCC / CE / RoHs

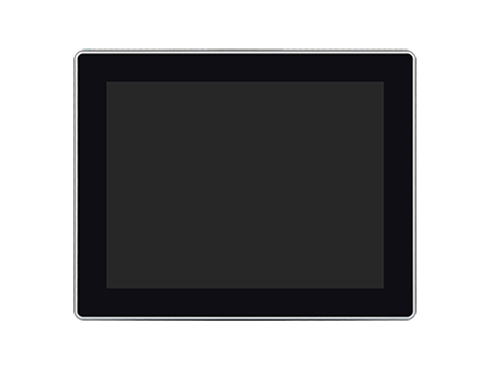

显示屏	12.1寸
触摸屏	电阻式触摸屏
分辩率	1024*768

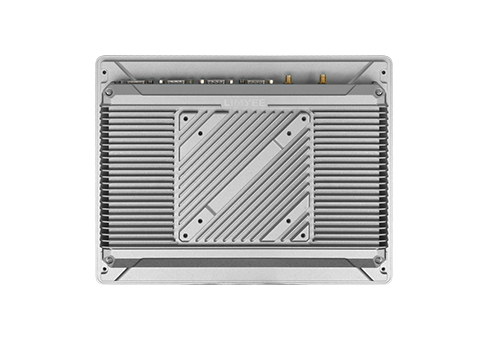

散热方式	无风扇
整机功耗	< 18W（屏4W）
整机尺寸	292x230x60mm
整机重量	< 3kg
机箱材质	铝合金压铸
整体颜色	太空灰色
安装方式	兼容嵌入式、壁挂式、桌面式
环境	工作温度：-10℃～60 ℃ 贮存温度：-20 ℃～70 ℃ 湿热：40 ℃ 95%RH 面板防护等级：IP65

处理器	Sky Lake（6-7代）	Whiskey Lake（8-10代）
BIOS	AMI BIOS	AMI BIOS
芯片组	Intel® SOC	Intel® SOC
图型显示	Intel® HD Graphics核显	Intel® HD Graphics核显
网络	2*Intel I211千兆网卡	Intel I219千兆网卡+ I211 千兆网卡
音效	Realtek ALC662HD	Realtek ALC662HD
内存	DDR4 2133 MHz Max 16G	DDR4 2400MHz Max 16G
硬盘	M-SATA 128G	M.2 2280 NVME128GB
功能	支持WiFi、蓝牙、4G、看门狗，支持无盘启动、网络唤醒、上电开机	支持WiFi、蓝牙、4G、看门狗，支持无盘启动、网络唤醒、上电开机
前I/O接口	1开关 2天线 4*COM	1开关 2天线 4*COM
后I/O接口	1Audio接口 2LAN 接口 2USB3.0接口 1HDMI接口 1VGA接口 1DC IN接口 4USB接口 1M3接地螺孔	1Audio接口 1DP接口 1HDMI接口 4USB3.2接口 2LAN 接口 1DC IN接口 4USB接口 1M3接地螺孔 1CMOS按键支持8GPIO
电源	DC12V -24V宽压输入	DC12V -24V宽压输入
