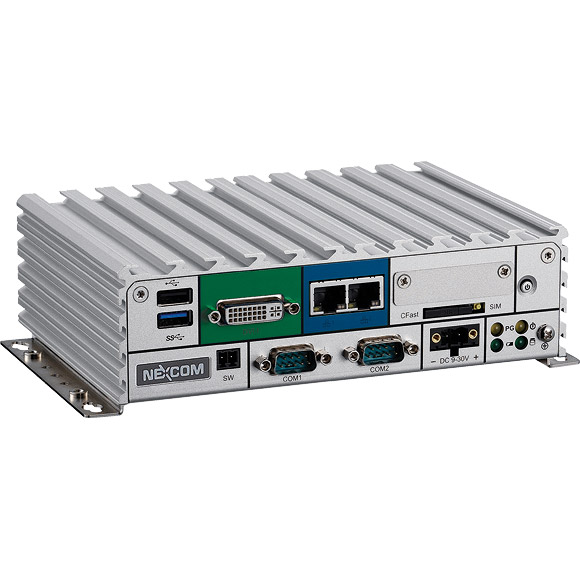

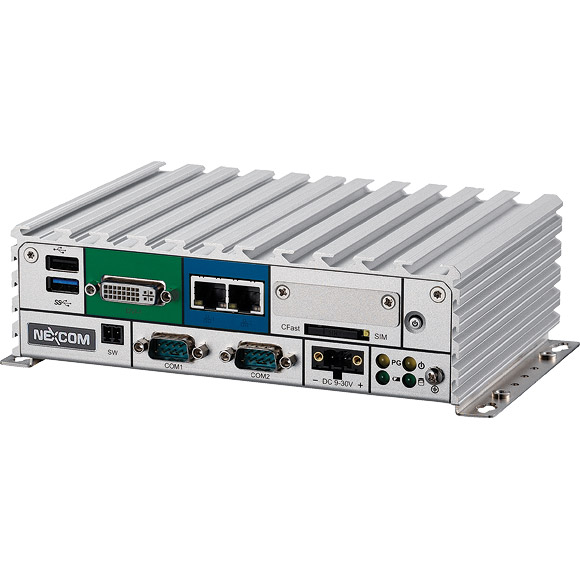

NISE 105/105A

Intel® Atom™ E3826双核处理器，无风扇系统

主要特点
板载Intel® Atom™ E3826 双核处理器, 1.46GHz
双独立显示，支持DVI-I和HDMI
2 x Intel® I120IT LAN 接口，支持WoL, Teaming和PXE功能
2 x USB2.0 & 1 x USB3.0
4 x COM 接口 (COM1&COM2 with RS232/422/485, 无跳线设置)
1 x 可选Wi-Fi/3.5G/自动模块可选
外接RTC 电池托架，易更换
支持-20 ~ 70 度扩展操作温度
支持9-30VDC 输入

产品型录

产品介绍
产品规格
档案下载

采用Intel® Atom™ E3826处理器 (代号 "Bay Trail-I"), NISE 105提供出色性能，不仅体现在运算性上还体现在图形性能上，并提出了智能和工业运算解决方案的新机会。NISE 105 支持达 4G DDR3L 内存和多存储设备可选，如CFast, HDD 和 SSD. NISE 105也是NISE 100系列产品中支持 -20到 70度宽温和9-30VDC 宽压的产品.此外，NISE 105无线缆连接，使NISE 105 持续稳定运行在温度和振动的严苛环境。NISE 105 拥有高集成性能，可选 Mini-PCIe模块和 4 x COM 接口，适用多种实时智能系统，如工厂自动化应用(可选PROFIBUS, ProfiNET, DeviceNET, EtherCAT, Ethernet IP 主站模块), 网络应用 (可选 GbE LAN, Wi-Fi, 3.5G/4G LTE 模块) 和通讯应用 (可选 GPIO, RS232/422/485)。

CPU	Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
内存	1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB RAM max., un-buffered and non-ECC
显示选项	Dual Independent Display - HDMI and DVI-D - HDMI and VGA (via DVI-I to VGA converter)

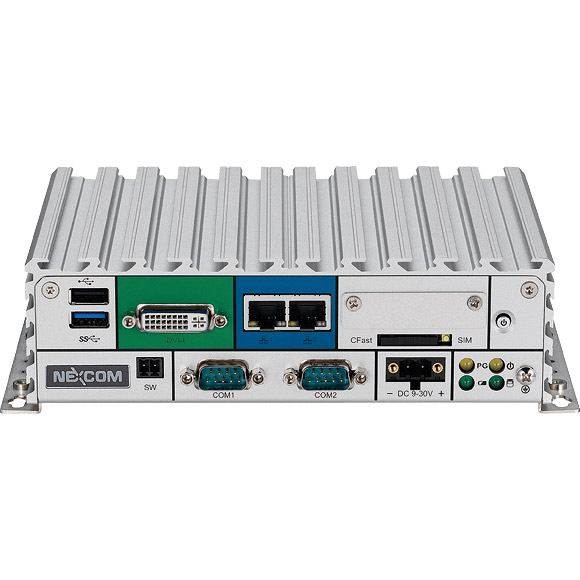

前置I/O界面	ATX power on/off switch 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs 1 x External CFast socket 1 x SIM Card holder 2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE 1 x DVI-I Display Output 1 x USB3.0 (900mA per each) 1 x USB2.0 (500mA per each) 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 - Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only) 1 x Remote Power ON/OFF Switch 1 x 2-pin DC input, support +9 to 30VDC input

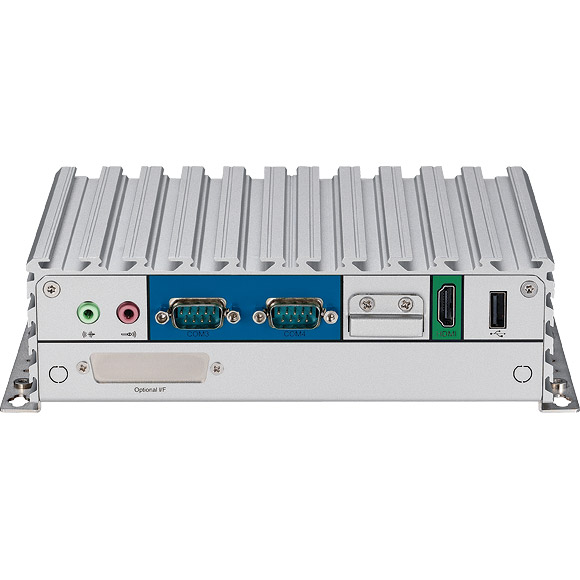

后置I/O界面	1 x USB2.0 1 x HDMI 1 x RTC Battery 2 x DB9 for COM3 & COM4 - NISE 105 : support RS232 only - NISE 105A: support RS232/422/485 with auto flow control 1 x Mic-in & 1 x Line-out 2 x Antenna Holes for optional Wi-Fi/3.5G antenna 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G/Hilscher Automation module output
I/O界面 - 内部	4 x GPI and 4 GPO (5V, TTL Type)
存储设备	1 x CFast (SATA3.0) 1 x 2.5" HDD (SATA2.0) 1Mb NVRAM(on NISE105A Only)
扩展槽	1 x Mini-PCIe socket for optional Wi-Fi/3.5G/Hilscher automation modules
电源需求	Power input: +9VDC to +30VDC 1 x optional 24V, 60W power adapter
操作系统支持	Windows 8, 32bit/64bit Windows Embedded Standard 8, 32bit/64bit Windows 7, 32bit/64bit Windows Embedded Standard 7, 32bit/64bit Windows Embedded Compact 7, 32bit Linux Kernel version 3.8.0
尺寸	185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
构造	Aluminum and Metal Chassis with fanless design
运行环境	Operating Temperature: Ambient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -30°C to 85°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection: - HDD: 20G, half sine, 11ms, IEC60068-27 - CFast: 50G, half sine, 11ms, IEC60068-27 Vibration Protection w/HDD Condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration Protection w/CFast & SSD Condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
认证	CE FCC Class A
