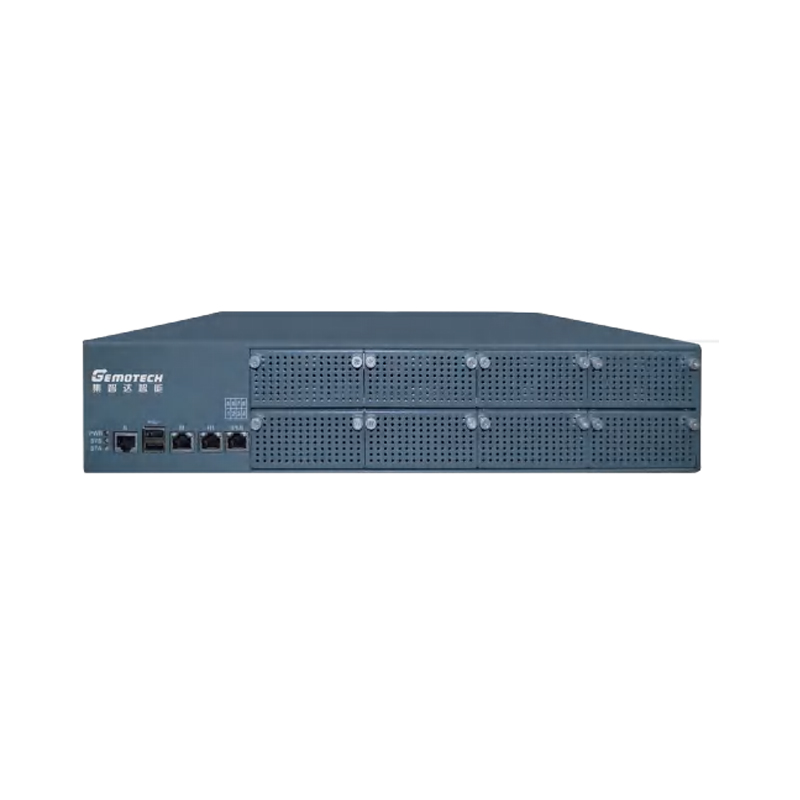

GNS-1340

基于飞腾S5000C-16处理器，2个管理口，IPMI接口，支持8个前置扩展插槽的2U网安平台

产品型录

产品介绍
产品规格
档案下载

基于飞腾S5000C-16处理器，2个管理口，IPMI接口，支持8个前置扩展插槽的2U网安整机

主要特点
◆国产飞腾 S5000C-16核 CPU，2.3GHz，提供更高IPC和更高能效
◆2个管理口，采用国产网迅网卡芯片，提高国产化
◆内置PCleGen4x8信号插槽，满足客户卡对带宽需求
◆支持国产化IPMI接口，可灵活选择和搭配
◆支持DDR5 RDIMM，双通道，容量可到128G
◆支持PCle GEN4，提供更高带宽
◆国产化uEFI，先进的固件架构，深度定制，安全可控
◆支持国产化操作系统，高安全，高可靠

处理器系统	飞腾腾云 S5000C-16 标准版，16 核，主频 2.3GHz，87.5W，45mmx45mm BGA 封装
内存	双通道 DDR5 RDIMM，4400MT/s
LAN	板载 2 个千兆管理电口板载 1 个 IPMI 接口 4-8 个前置扩展插槽，可扩展 4 电 /4 光 /8 电 /8 光/2 万兆 /4 万兆等网卡
前面板I/O 接口	支持 2x16 个字符 LCD 模块 PWR 电源状态 /HDD 状态 /GPIO 2 电口，4-8 前置扩展 1 个 IPMI 接口 2 个 USB3.0 接口 1 个 RJ45 串行接口
扩展接口	4-8 个前置扩展接口 1 个 DDR4-SODIMM IPMI 接口 ( 选配 ) 1 个 miniPCIe 接口 ( 与 IPMI 接口二选一 )

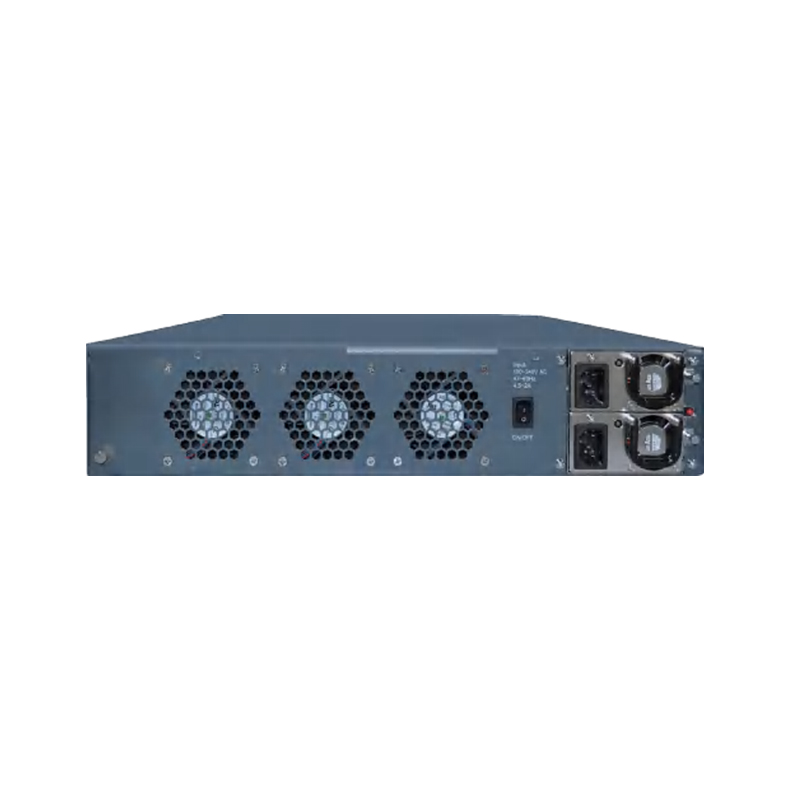

后面板I/O 接口	1 个电源开关按钮 2 个电源接口支持 1 个 VGA 接口 ( 选配 )
存储单元	1 个 mSATA 接口 3 个 SATA 接口
电源输入	单电、冗电 ATX 24Pin+8Pin 电源模块
工作环境	工作温度 : 0℃ ~ 40℃ 存储温度 : -40℃ ~ 70℃ 相对湿度 : 10%~90%( 无凝结 )
机箱尺寸	580mm×435mm×88mm（长 x 宽 x 高）
