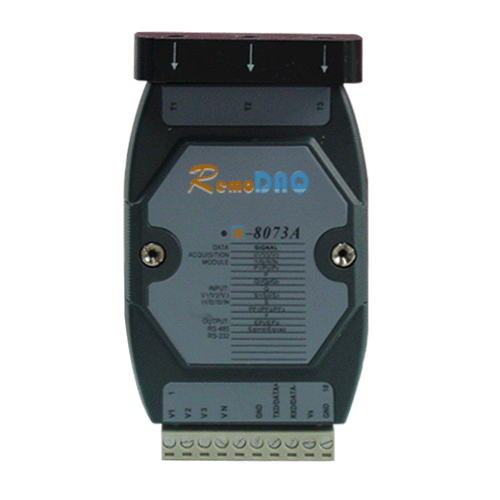

R-8073A

RemoDAQ-8073A 三相全参数电量变送模块是一种用于交流电量综合参数测量的智能模块，它可以同时测量三相交流回路的每一相电压、电流、有功功率、无功功率、视在功率、功率因数、频率、有功电度、无功电度等参数。

主要特点

- 用于交流电量综合参数测量

- 可同时测量三相交流回路的每一相电压、电流、有功功率、无功功率、视在功率、功率因数、频率、有功电度、无功电度等参数

- 兼容RS-232和RS-485通讯接口

- 体积小、功能多、精度高

- 可用在多种交流用电场合下的测量、计量及远程集中抄表、监控管理等

- 输入频率：35～75Hz

- 电压量程：10～500V，可通过外加电压互感器及设定电压变比测量较高电压

- 电流量程：基本量程0～5A，可通过外加电流互感器及设电流变比测量较大电流

- 信号处理：16位A/D转换，6通道，每通道均以4KHz速率同步交流采样，模块实时数据为1秒的真有效值（每秒刷新1次）

- 输出接口：RS-485、RS-232

- 通讯协议：ASCII命令集、MODBUS-RTU、MODBUS-ASCII协议

- 供电电源：+10V～+30VDC

产品型录

产品介绍
产品规格
档案下载

RemoDAQ-8073A 三相全参数电量变送模块是一种用于交流电量综合参数测量的智能模块，它可以同时测量三相交流回路的每一相电压、电流、有功功率、无功功率、视在功率、功率因数、频率、有功电度、无功电度等参数。

（本产品新旧包装混发）

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/13	用户手册 R-8073A			下载
