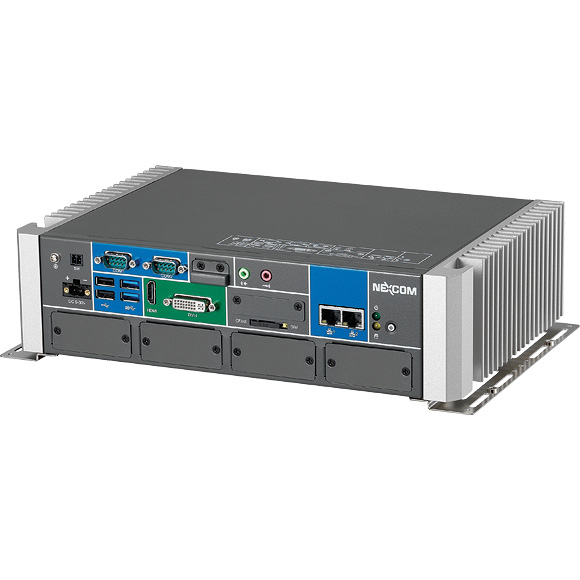

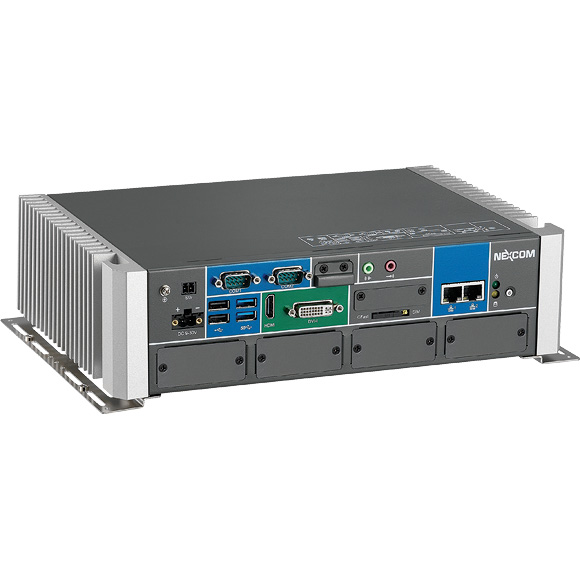

NISE 300是一款高性能无风扇工业计算机，采用第四代Intel® Core™ i5处理器和Lynx Point QM87 PCH，不仅提供出色的系统性能，还是一个全新、智能的工业计算机解决方案。NISE 300高支持8G非缓存和non-ECC DDR3/ DDR3L内存，CFast，SATAIII以及USB 3.0技术。支持+12和+24 DC输入，操作温度支持-5℃到55℃。前置I/O界面采用用户友好设计；所有I/O接口均位于前界面，易于系统使用和功能扩展。其机械设计采用2U 19”机架式尺寸。同时，NISE 300集成6个mini-PCIe插槽和2个COM Port接口，真正成为一款多功能计算机，可广泛应用于工厂自动化(PROFIBUS、DEVICE NET、EtherCAT、PROFINET、Ethernet IP)，网络(GbE LAN、Wi-Fi、GSM)和存储设备(mSATA)等应用。基于其功能和灵活的模块扩展，NISE 300无疑是M2M智能化和工厂自动化平台的选择。

CPU	Onboard BGA type 4th generation Intel® Core™ i5 processor Core™ i5-4402E, Dual Core™, 1.6GHz
内存	2 x DDR3/ DDR3L SO-DIMM Socket, support up to 8GB DDR3/ DDR3L 1333/ 1600 RAM, un-buffered and non-ECC
显示选项	Three Independent Display - VGA+DVI-D (Through DVI-I Y Cable) + HDMI Dual Independent Display - DVI-D + VGA - HDMI + VGA

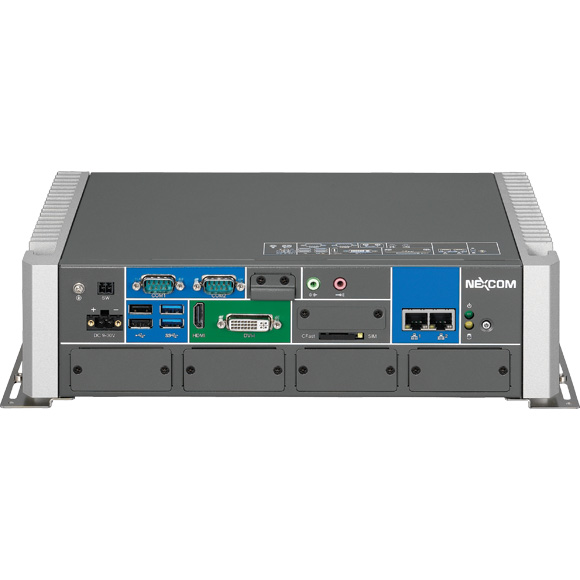

前置I/O界面	ATX power on/ off switch 1 x Remote Power ON/OFF Switch 1 x Power Status/ 1 x HDD Access LEDs 2 x USB3.0 ports (Blue Color, 900mA per each) 2 x USB2.0 Ports (500mA per each) 1 x DVI-I, 1 x HDMI 2 x DB9 for COM1 & COM2 - support RS232/ 422/ 485 with Auto Flow Control - support 5V/ 12V/ Ring function by jumper setting 2 x Intel® 82574L GbE LAN Ports, Support PXE / Teaming / WoL 1 x External CFast socket 1 x SIM Card holder 1 x External RTC Li-ion Battery holder 1 x Line out and 1 x Mic-in
内置I/O界面	4 x GPI and 4 GPO (5V, TTL Type) 4 x COM Ports Box Header (RS232 only) 1 x USB 2.0 Internal Connector, for USB dongle 2 x USB 2.0 Internal Box Header
存储设备	1 x CFast (SATA 3.0) 1 x mSATA (SATA 3.0) 2 x 2.5” HDD (SATA 3.0)
扩展槽	1 x mini-PCIe socket for GSM/ Wi-Fi 1 x mini-PCIe socket for mSATA 4 x mini-PCIe socket for expansion modules
电源需求	ATX Power Mode Power input: +9V and +30V DC input Power adapter: Optional AC to DC power adapter (+19Vdc, 120W)
尺寸	310mm (W) x 212mm (D) x 80mm (H) without Wall-Mount bracket
构造	Aluminum and Metal Chassis with fanless design
运行环境	Operating Temperature: Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -40°C to 85°C Relative Humidity: 95% at 40°C Shock Protection: HDD: 20G, half sine, 11ms, IEC60068-27 CFast: 50G, half sine, 11ms, IEC60068-27 Vibration Protection w/ HDD Condition: Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
认证	CE FCC Class A
OS Support Lists	Windows 7 32bits and 64bits Windows 8.1 32 bits and 64 bits
