集成了第三代Intel® Core™ i7处理器，搭配QM77 PCH平台，NISE 3640E系列配置4x Intel® 82574IT GbE LAN控制器，支持高达4路摄像，更好的吞吐量;不仅如此，NISE 3640E系列支持WoL, LAN teaming和PXE功能。同时，其运算性能和图像处理性能得到增强，NISE 3640E系列支持3独立显示，并提供高性能图像和视觉检测，可用于交通控制、超速监控、实时更新和电子警察等。另外，NISE 3640E系列支持2x RS232/422/485, 4x RS232, 2x USB3.0, 2x USB2.0, 1x CFast插槽, 1x SIM卡槽,和1x 内置Mini-PCIe插槽，支持可选的WiFi 或 3.5G模块。



凭借其无风扇、无缆线设计和宽温操作等特点，NISE 3640E系列可在极端温度变化和振动存在的苛环境下运行。

CPU	OnBoard 3rd generation Intel® Core™ i7 BGA processor Core™ i7-3517UE, Dual Core, 1.7GHz, 4M Cache Mobile Intel® QM77 PCH
内存	On-board 2x DDR3/DDR3L SO-DIMM, supports up to 8GB DDR3/ DDR3L 1333/1600 SDRAM, with un-buffered and non-ECC Pre-install 4G Industrial Grade Memory as the manufacture configuration for shipment
显示选项	Three Independent Display (only support on 3rd Generation Processor) - Two Display Port and 1x VGA - Two Display Port and 1x DVI-D Dual Independent Display - VGA and DVI-D - Display Port and VGA - Display Port and DVI-D - Display Port and Display Port

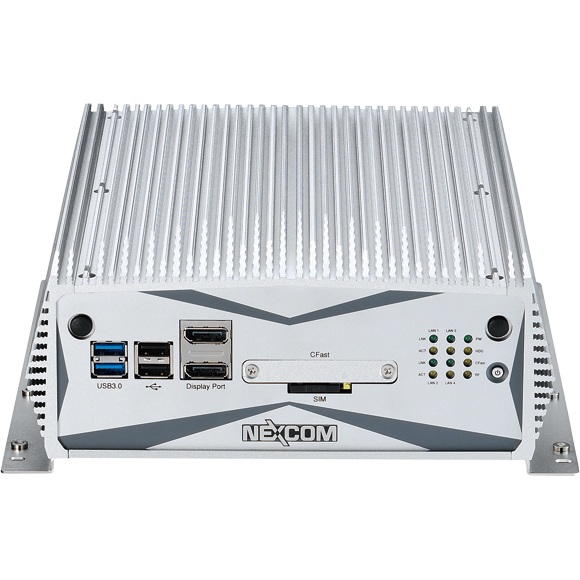

前置I/O界面	ATX power on/off switch HDD access/ Power status/ LAN status LEDs 2x USB3.0 (Blue color) 2x USB2.0 2x Display Port (Can be converted to DVI-D or HDMI via active cables) 1x CFast socket 1x SIM card socket 2x Antenna holes

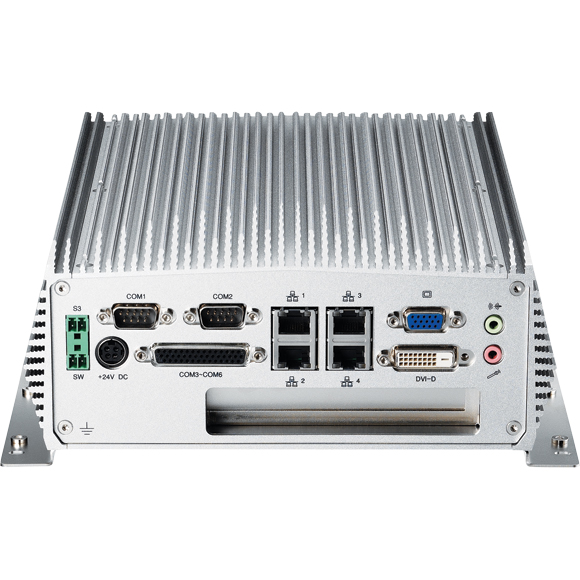

后置I/O界面	2x DB9 for RS232/422/485 1x DB44 for 4x RS232 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE 1x DB15 VGA port 1x DVI-D 1x Line-out and 1x Mic-in 2-pin Remote Power on/off switch +24VDC Input
存储设备	1x 2.5” SATA HDD or 2x SATA DOM (support 90°C horizontal type only) 1x CFast socket
扩展槽	One PCIe x4 Expansion Slot - Add-on card length: 169mm max. - Power consumption: 10W/slot max. 1x Mini-PCIe socket (support optional WiFi or 3.5G module)
电源需求	ATX Power mode Support +24VDC Input Optional power adapter
尺寸	215mm (W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5” x 10.7” x 3.7”)

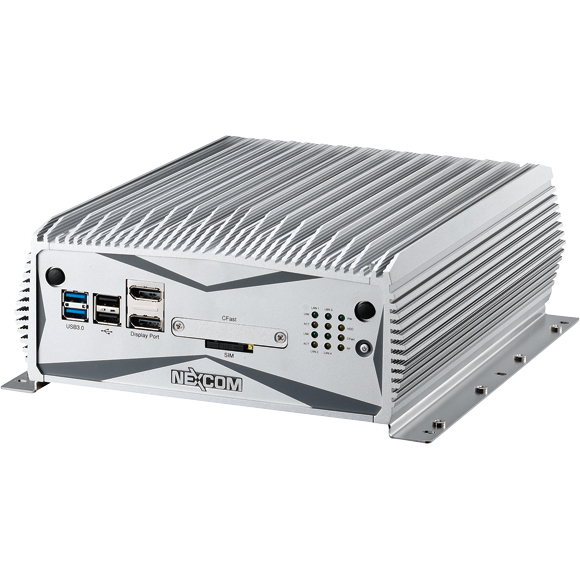

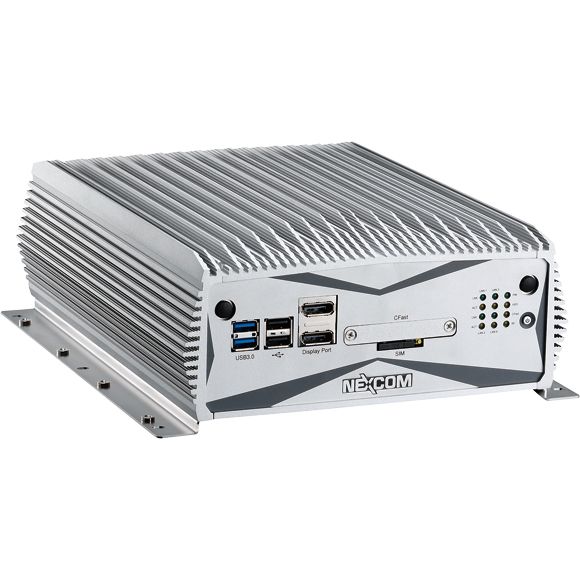

构造	Aluminum Chassis with fanless design
运行环境	Operating temperature: Ambient with air flow: -20°C ~ 60°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -30°C ~ 85°C Relative humidity: 95% at 40 degree C Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protection Random: 0.5Grms @5~500 Hz according to IEC68-2-64 Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
认证	CE approval FCC Class A
OS Support Lists	Windows XP 32bits and 64bits Windows 7 32bits and 64bits Windows 8.1 32 bits and 64 bits
