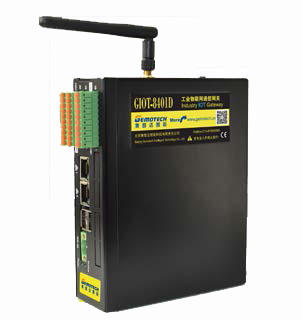

GIOT-8401D

基于freescale I.MX6 系列平台设计的工业级嵌入式工控机

产品型录

产品介绍
产品规格
档案下载

基于freescale I.MX6 系列平台设计的工业级嵌入式工控机

- 基于ATMEL Cortex A5 CPU
- 4*RS232/RS485，2*CAN，4*USB，2*RJ45
- 支持2G,3G,4G 功能扩展
- 带扩展接口，可扩展GPS,2G,3G,4G，
WIFI 等应用
- 其中GIOT-8401D 为端子型多功能网关，
可扩展多种不同功能的子板

功能	描述
处理器系统	CPU	ARM Cortex-A5 SAMA5D3
内存	技术架构	256M，DDR2( 可选512MB）
网络	控制器	CPU 内部集成2 个网
硬件检测	看门狗定时器	0~255 秒，提供看门狗例程
存储	SSD	EMMC 4/8/16GB,NAND FLASH 与EMMC 可选( 默认选用4G NAND)
	SD	1 路Micro SD 座
串口	COMO	DEBUG 口
	COM1-COM6	RS485/RS232 同时支持，均带隔离保护，双排端子接口，COM5~6需扩展
USB	2.0 HOST	2路
	MiniPCIE	1 路 MINI PCIE 接口，集成USB 信号，支持2G/3G/4G 通讯卡( 通讯卡用MINIPCIE还是直接焊在板子上，根据成本确定)
	OTG	1路
显示	TTL LCD	CPU 集成，适合给小尺寸LCD 应用
	触摸屏	4 线电阻触摸屏
扩展接口	GPIO	8路
	AD	8 路，CPU自带
	CAN	2*CAN 总线
	SPI	2 路SPI 接口
	PWM	2 路PWM 输出
	I2C	1 路I2C 接口
	SDIO	1路
音频	接口	MIC/ 耳机
	功放	2W@8 欧姆功放输出
功能按键	KEYPAD	扩展上、下、左、右方向按键，确定、返回功能键
RTC 时钟		CR2302 可充电电池供电，精度要求：误差±3. 秒/ 月
其他性能参数
电源	电源类型	DC 9V~28V，支持电源反向及过压保护
		2Pin 端子供电
	电源功耗	8W
工作环境	工作温度	-20℃ ~ 70℃
	存储温度	-40℃ ~ 80℃
	工作湿度	0% ~ 90% 相对湿度, 无凝露
	存储湿度	0% ~ 90% 相对湿度, 无凝露
外观尺寸	尺寸	3.5" 布局
