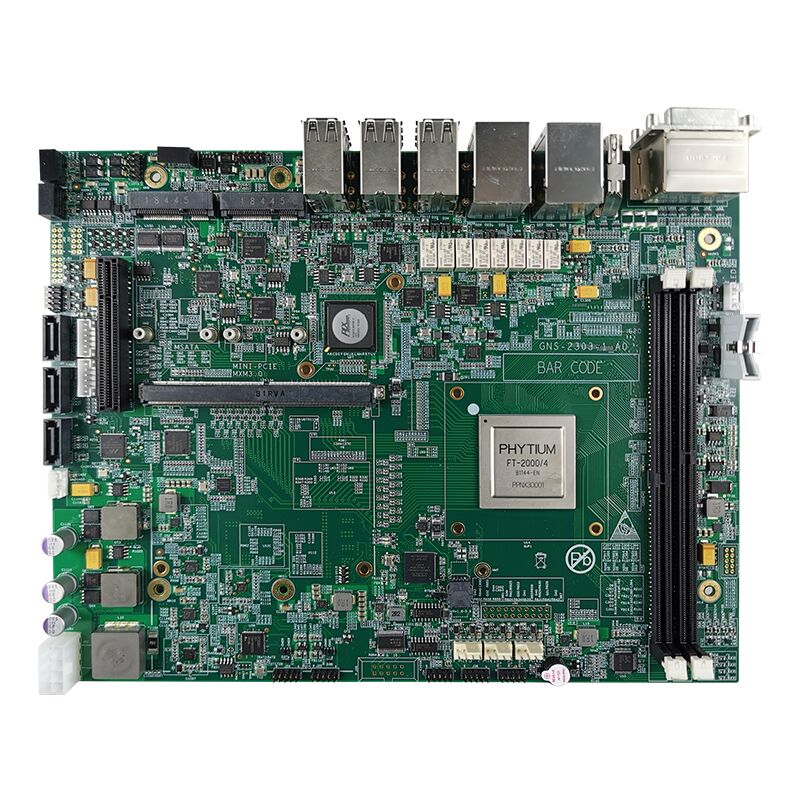

GEA-6625-UFT工控主板

基于飞腾四核（FT-2000/4）、支持可信计算、板载20个USB 接口工控主板

产品型录

产品介绍
产品规格
档案下载

基于飞腾四核（FT-2000/4）、支持可信计算、板载 20个USB 接口工控主板

主要特点

◆ FT2000/4C飞腾CPU，4个 FTC663内核，或D2000 8核飞腾CPU，8个FTC663内核

◆ uEFI BIOS

◆ 支持大唐高鸿安全芯片，支持 TCM1.0、TPM2.0 ，支持等保 2.0

◆ 2 个 DVI 和 1 个 HDMI 接口的MXM 显卡，采用和PCI-Express 兼容的通讯协议，可配置多种图形芯片，以提供图形处理解决方案

◆ 双网口，支持1组Bypass功能

◆ 20个USB2.0/USB3.0 接口

订货号

型号

配置

随机配件包

20G60662500XA

GEA-6625-

UFT

FT-2000/4 / 2 电口 / 16 个 USB2.0 / 4 个 USB3.0 / 3 SATA 接口 / 1 个PCIe 8x 接口 / 1 个 Mini PCIe 接口 / 1 个 20Pinheader 可信卡接口

说明书

主板型号	GEA-6625-UFT
处理器系统	FT-2000/4 核或 D2000 8核
内存	2 条 DIMM Socket 支持 DDR4-3200 内存，可支持到 128GB
扩展	1 个 PCIe 8x 插槽，可插客户卡
	1 个 Mini PCIe 插槽，可插 4G/WIFI 模块或其它设备
	1 个 20 Pinheader，可插大唐高鸿安全芯片TPM2.0 卡
串口	2 个 RS232 Pinheader 内置接口
串口	1 个 DB9 接口
USB	4 个 USB 3.0，海岸线引出
USB	16 个 USB 2.0，海岸线引出 12 路，预留 4 路
显示	MXM 接口，R550，2 个 DVI 接口，1 个 HDMI 接口，或根椐客户需求更换
音频	1 个 Audio 接口
CAN	3 个 CAN 接口
以太网口	板载 2 路 RJ45 千兆电口、支持1组Bypass功能
存储	1 个 mSATA 接口
存储	3 个 SATA 接口，支持 2.5 或 3.5 硬盘
电源	支持外接 6PIN 电源接口，直流 DC 24V
操作系统	支持银河麒麟、泰山国心、深度、开源 Linux等操作系统
工作环境	工作温度 0℃ ~ 40℃
	存储温度 -40℃ ~ 70℃
	0% ~ 90% 相对湿度，无凝露
