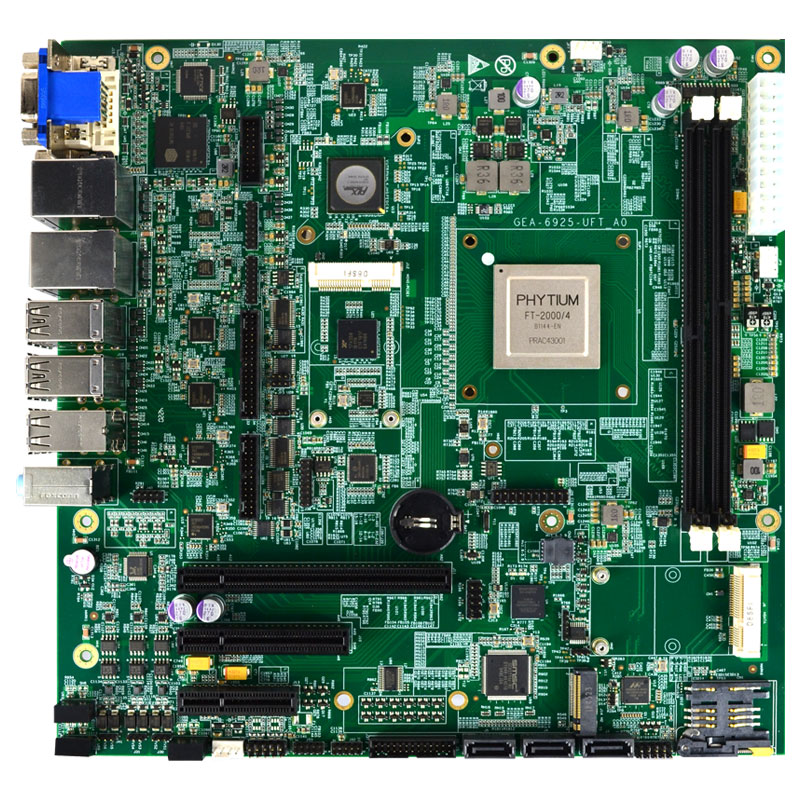

GEA-6925

基于飞腾四核FT-2000/4、D2000 8核，支持可信计算，16个USB、12个串口的mATX主板

产品型录

产品介绍
产品规格
档案下载

基于飞腾四核FT-2000/4、D2000 8核，支持可信计算，16个USB、12个串口的mATX主板

主要特点

◆ FT-2000/4飞腾CPU，4个FTC663内核，同时支持D2000 8核飞腾CPU，8个FTC663内核

◆ 板载VGA+DVI-D接口

◆ 支持大唐高鸿安全芯片，TCM1O，TPM2.0

◆ 支持可信华泰M.2接口的TPCM可信卡，板卡配合实现主动度量

◆ 支持多种开源操作系统或国产化操作系统

主板型号	GEA-6925
内存	2通道DDR4，可支持64GB内存
扩展	内置1个PCI-E 16X（X16 Slot）接口
	1个PCIe x8接口，可插客户卡，信号为标准定义
	1个PCIe x4接口，插槽管脚定义符合PCI-E总线规范
	1个Mini PCIe插槽，管脚定义符合PCI-E总线规范
	1个M.2支持可信华泰的TPCM可信卡,兼容M.2 NVME SSD
串口	内置11个COM插针，海岸线1个全线制DB9串口为COM1,RS232/RS485切换，隔离保护
串口	COM2的 RS232和 RS485跳线可选，COM3-6跳线选择5V/12V供电，,COM7-12三线制
USB	8个USB2.0，8个USB3.0
USB	海岸线On-Board USB 2.08，USB 3.08
以太网口	板载2个RJ45千兆电口
存储	3个SATA接口
存储	1个mSATA接口，兼容USB信号，可插SIM卡或4G模块
电源	ATX 20Pin
操作系统	支持常用的开源操作系统或支持国产化操作系统（例如Centos，Ubantu，如麒麟，深度等）
工作环境	工作温度0℃~ 45℃
工作环境	存储温度-40℃~ 70℃
