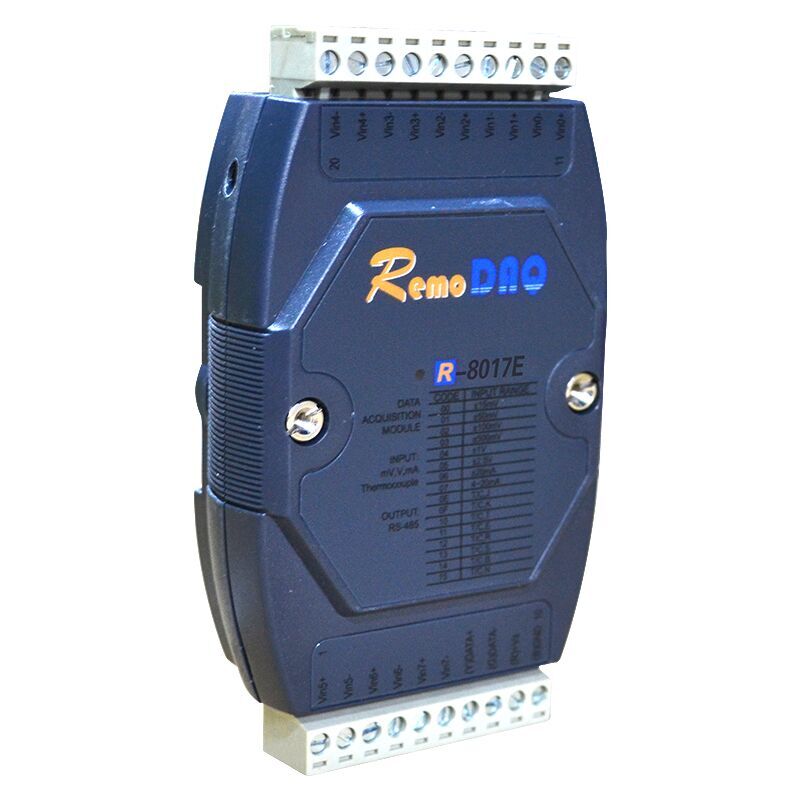

R-8017E

支持Modbus协议和ASCII协议的8通道差分模拟量输入或6路差分（2路单端）输入模块。

输入通道：8路或6路差分，2路单端（跳线可选）模拟量输入模块

输入类型：电压、电流

输入类型：mV，V，mA

热电偶类型：±150mV, ±500mV，±1V,±5V,±10V,±20mA,4~20mA

零漂移：0.5uV/℃

量程漂移：15ppm/℃

输入阻抗：20M Ohms

过电压保护：±51V

电源：输入：+3.8V ~ +55VDC

功耗：2.5W

产品型录

产品介绍
产品规格
档案下载

支持Modbus协议和ASCII协议的8通道差分模拟量输入或6路差分（2路单端）输入模块。

输入通道：8路或6路差分，2路单端（跳线可选）模拟量输入模块

输入类型：电压、电流

输入类型：mV，V，mA

热电偶类型：±150mV, ±500mV，±1V,±5V,±10V,±20mA,4~20mA

采样速率：10次/秒

带宽：15.7Hz

精确度：±0.1%

零漂移：0.5uV/℃

量程漂移：15ppm/℃

CMR@50/60Hz：150dB

NMR@50/60Hz：100dB

输入阻抗：20M Ohms

过电压保护：±51V

电源：输入：+3.8V ~ +55VDC

功耗：2.5W

温度：-20℃ ~ 70℃

湿度：5% ~ 90%，无凝露
