GNS-1413

基于海光3系CPU、集成可信计算、国产网卡芯片的8电4光2扩的1U/2U网安整机

产品型录

产品介绍
产品规格
档案下载

国产化 X86 处理器，支持多线程 (SMT)，可无缝应用到生态链中。GNS-1413 兼容海光三号 CPU，平台集成 8个千兆以太网电口和4个千兆以太网光口，3 组 Bypass，网卡芯片采用国产化网讯芯片，提高自主可控。平台可支持达128G内存，2 个 SATA3.0 接口，2 个 Mini PCle 接口，1个支持TPM卡的接口，支持2个PCle 8x前置扩展插槽，内置2 个USB3.0 Pin header，1个内置串口等。

主要特点

◆ 支持海光二号 CPU 及海光三号 CPU

◆ 内置1个TPM卡接口，实现安全可信

◆ 板载8千兆电接口4千兆光接口

◆ 板载4条DDR4 UDIMM 插槽，可达到128GB内存容量

◆ 内置2个MiniPCIe插槽，满足客户卡需求

◆ 平台高计算性能、高内存带宽、高I/0带宽，应用广泛

◆ 支持国产或开源系统，windows、麒麟、普华、凝思、方德、CentOS、ubuntu 等

处理器	海光3系2号/3号系列 CPU
内存	2通道，4条DIMM，可达128G
扩展	2 个 USB 3.0，板内预留双排插针 2 个 PCIe 8x 的内置扩展插槽，二选一可插客户卡 1 个 20 Pinheader，支持TPM 2.0 可信卡 2 个 Mini PCIe 接口，可插 4G/WIFI模块或客户卡

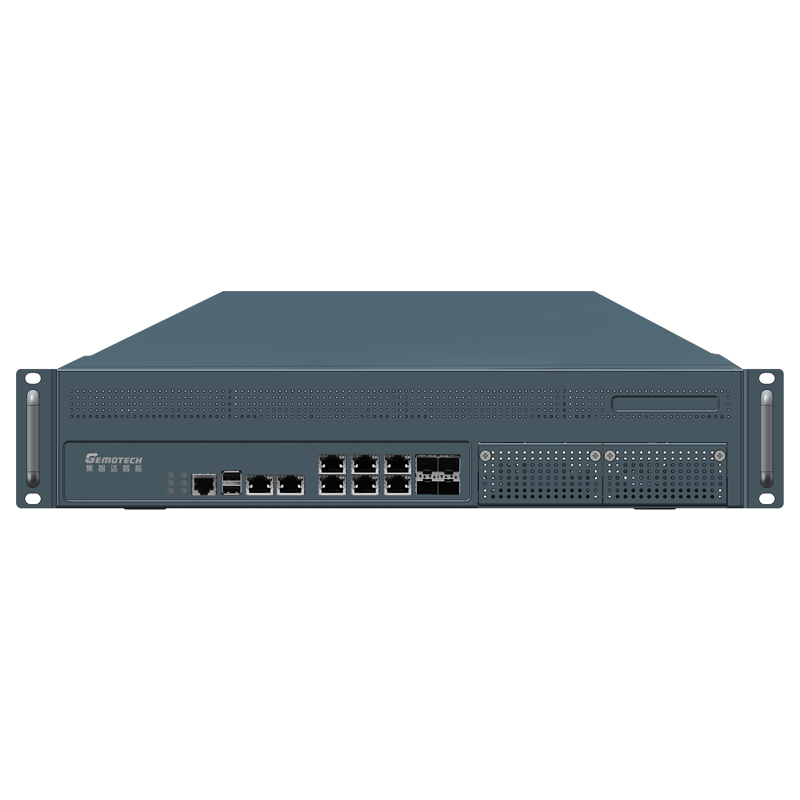

前面板 I/O 接口	PWR/SYS/STA灯，3组Bypass灯 1个RJ45串口 2个USB3.0接口 8个RJ45千兆网口 4个SFP千兆光口 2个前置网络扩展卡接口

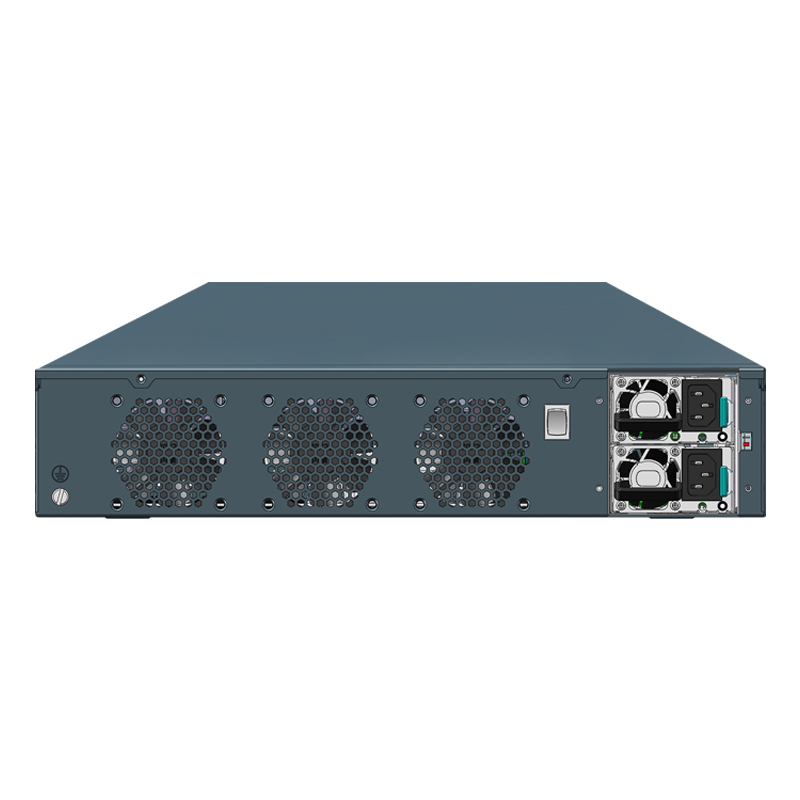

后面板 I/O接口	1个电源开关按键 1/2个外接电源输入接口
以太网口	板载8个RJ45千兆电口，带有3组bypass功能板载4个SFP千兆光口网卡芯片：网迅WX1860支持10/100/1000MB
存储	2个7-pin SATA3.0接口
电源	单电/冗电
操作系统	支持开源操作系统如centos，ubantu，redhat等也可以支持国产化操作系统，如凝思
工作环境	工作温度：0℃ ~ 45℃ 存储温度：-40℃~70℃ 相对湿度：0%~ 90(无凝露)
