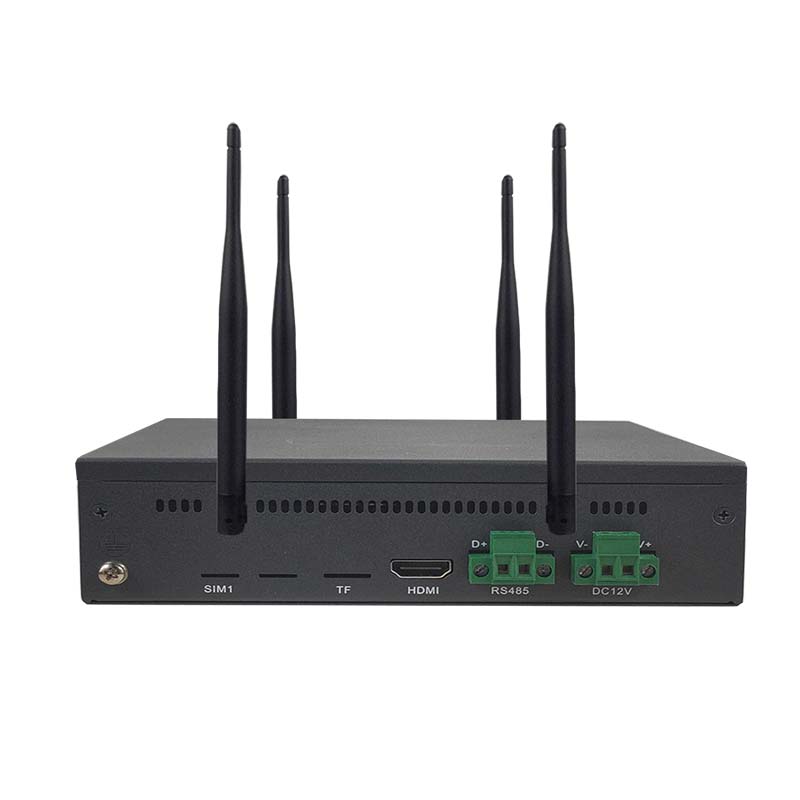

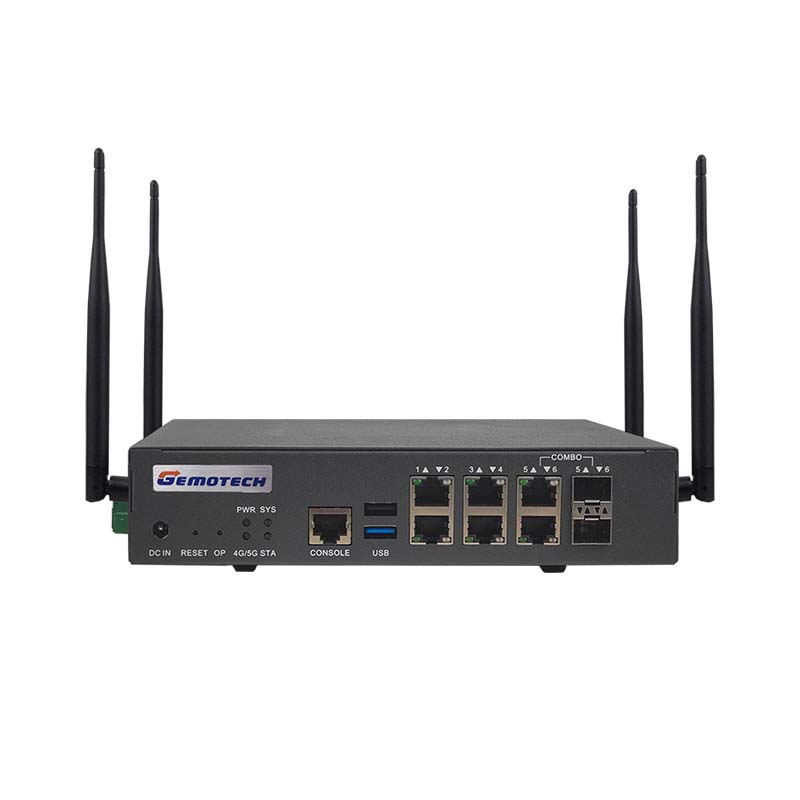

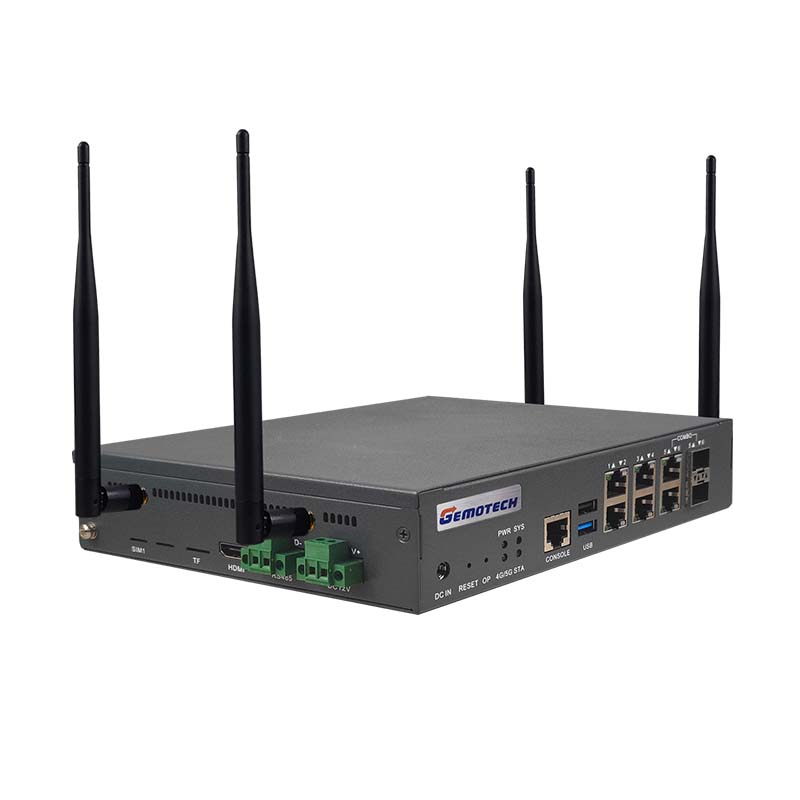

GNS-1600

GNS-1600-01 是集智达推出的一款面向网络安全、商密领域的轻量型产品。产品具有小型化，高性能，多扩展等特性，搭配低功耗高处理能力的瑞芯微RK3568 处理器，可支持 AI 计算处理，内部预留 miniPCIe 及 M.2 接口，便于用户扩展商密卡以及 LTE 和 5G 功能，支持多种安装方式（壁挂、DIN 导轨、桌面），适用于网络安全商密接入网关以及 SDWAN 产品的应用

产品型录

产品介绍
产品规格
档案下载

GNS-1600-01 是集智达推出的一款面向网络安全、商密领域的轻量型产品。产品具有小型化，高性能，多扩展等特性，搭配低功耗高处理能力的瑞芯微的 RK3568 处理器，可以支持 AI 的计算处理，内部预留 miniPCIe 及 M.2 接口，便于用户扩展商密卡以及 LTE 和 5G 功能，支持多种安装方式（壁挂、DIN 导轨、桌面），适用于网络安全商密接入网关以及 SDWAN 产品的应用

主要特点

RK3568 四核 64 位 Cortex-A55 处理器
网络支持 4 电 ( 交换 )+2COMBO
支持全信号的 miniPCIe、m.2、USB 接口设备扩展
可通过 miniPCIe 扩展加密卡、WIFI6、4G 模块
可通过 M.2 接口扩展 4G、5G 模块
支持 1 路 SATA 外扩硬盘
支持 SM2/3/4 国密算法
板载 WIFI 模块
支持其他 USB、GPIO、RS232/RS485、LORA 的扩展

项目	类型	规格描述
处理器	CPU	RK3568 （4核A55 2.0GHz）
内存	规格	核心板表贴单颗粒内存
内存	容量	LPDDR4内存2GB/4GB/8GB可选
显示	显示芯片	CPU自带HDMI引出
显示	接口形态	HDMI TYPE A接口
网络	芯片或控制器	4电+2COMBO（其中一路COMBO为独立千兆，其余为交换网口）
BYPASS	功能	默认无BYPASS，预留有BYPASS扩展板孔位
存储	SATA接口	1个标准SATA3.0接口
存储	EMMC	支持8G-64GB
串口	控制器	1路基于RS232总线的CONSOLE接口 1路基于RS232/RS485的端子串口（3PIN）
USB	控制器	前面板一个USB3.0 OTG，TYPE A 前面板一个USB2.0 HOST，TYPE A接口板内留有USB2.0插针用于扩展
miniPCIe	接口	1路miniPCIe接口引入PCIE 1X信号用于连接miniPCIe设备/加密卡以及扩展WIFI6及4G
M.2（5G）	接口	PCIE及USB信号引入，支持4G/5G模块以及AI加速卡
TPM	TPM接口	SPI总线，20PIN接口
TF卡	TF卡接口	1路TF卡接口
SIM	SIM卡槽	2个SIM卡槽一个连接4G_miniPCIe 一个连接5G_m.2接口
FAN	插座	CPU及system风扇标准供电接口
电源	电源接口	默认12V DC JACK接口，同时支持端子供电
GPIO	GPIO	除系统或LED外，内置1组8位的GPIO控制插针
RTC	RTC	电池供电RTC
Watchdog	Watchdog	外部独立硬件看门狗
CAN	信号	2路CAN信号
尺寸	整机	206×161×44mm

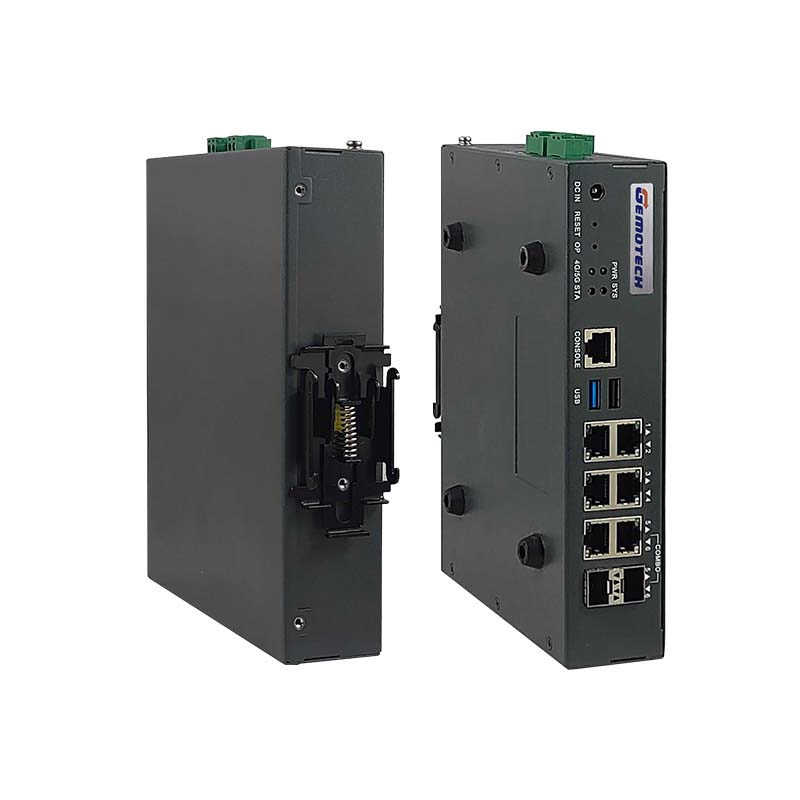

安装方式	整机安装	支持桌面、DIN 导轨等安装方式
