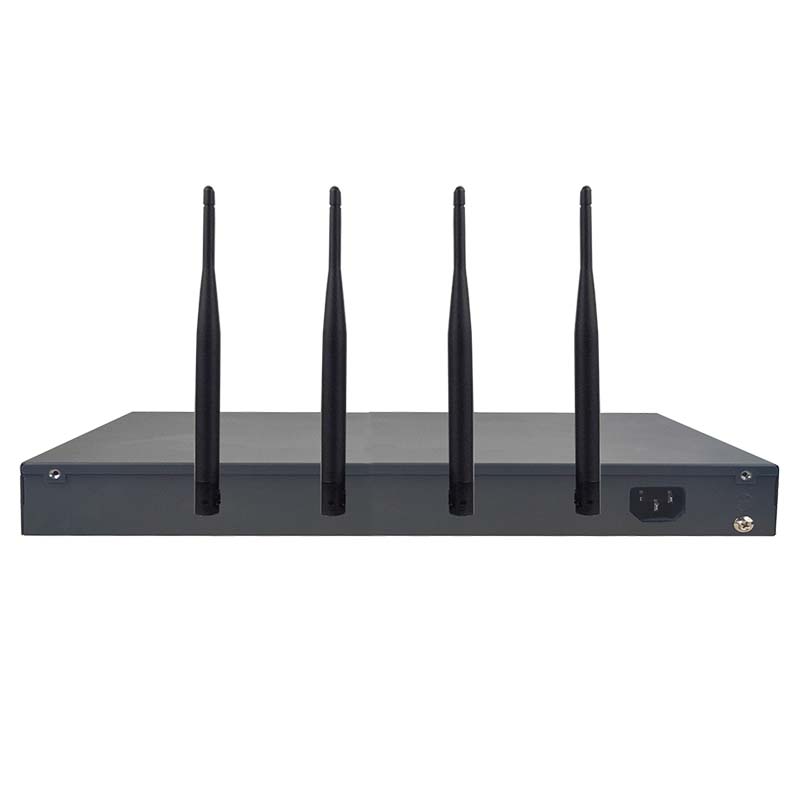

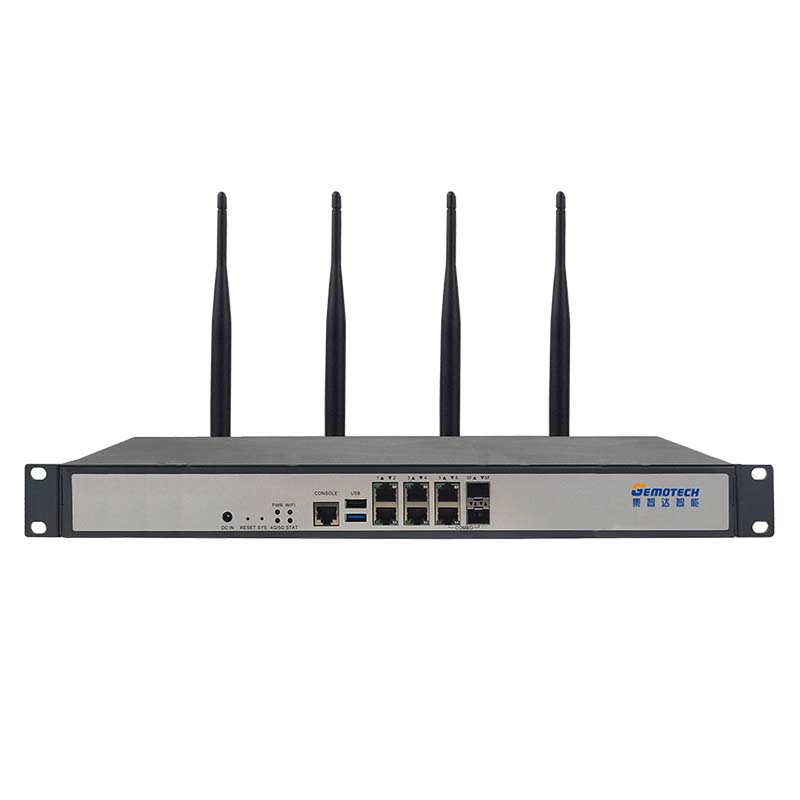

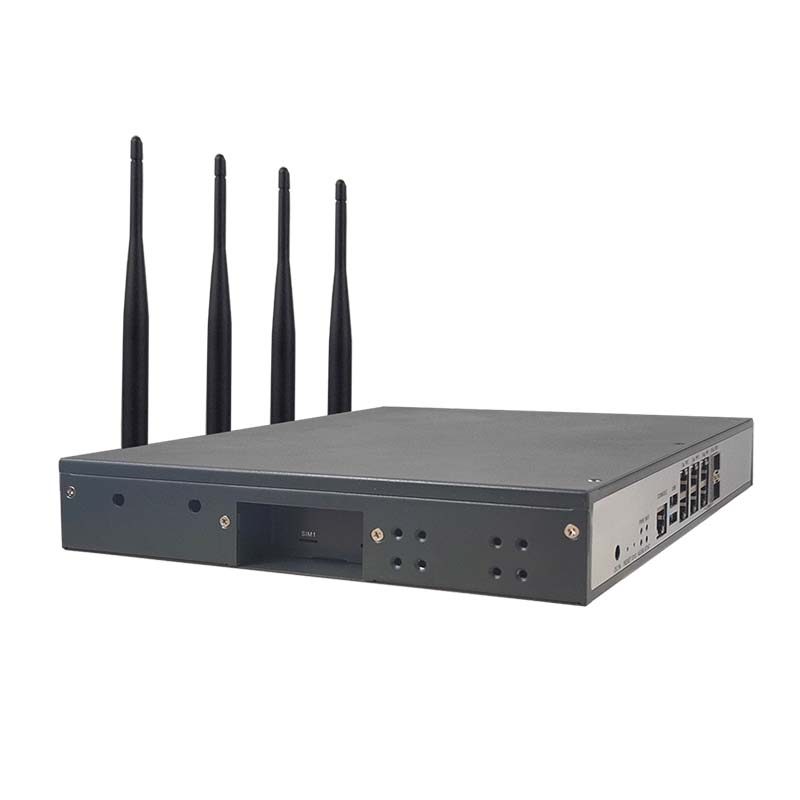

GNS-1601

1U上架式商密接入网关 /SDWAN

产品型录

产品介绍
产品规格
档案下载

产品概述

GNS-1601是集智达推出的一款面向网络安全、商密领域的1U上架型产品。产品具有高性能，多扩展等特性，搭配低功耗高处理能力的瑞芯微RK3568处理器，可支持AI 计算处理，内部预留miniPCIe 及 M.2 接口，便于用户扩展商密卡以及 LTE 和5G功能，支持多种安装方式（机柜上架、桌面），适用于网络安全商密接入网关以及 SDWAN产品的应用。

主要特点

RK3568 四核64位Cortex-A55处理器
网络支持4电(交换 )+2COMBO
支持全信号的miniPCIe、m.2、USB接口设备扩展
可通过 miniPCIe扩展加密卡、WIFI6、4G模块
可通过 M.2接口扩展4G、5G模块
支持1路SATA 外扩硬盘
支持SM2/3/4国密算法
板载WIFI模块
支持交流220V供电
19寸上架型、桌面型安装产品

项目	类型	规格描述
处理器	CPU	RK3568（4核A55 2.0GHz）
内存	规格	核心板表贴单颗粒内存
内存	容量	LPDDR4内存2GB/4GB/8GB可选
显示	显示芯片	CPU自带HDMI引出
显示	接口形态	HDMI TYPE A接口
网络	芯片或控制器	4电+2COMBO（其中一路COMBO为独立千兆，其余为交换网口）
BYPASS	功能	默认无BYPASS，预留有BYPASS扩展板孔位
存储	SATA接口	1个标准SATA3.0 接口
存储	EMMC	支持8G-64GB
串口	控制器	1路基于RS232总线的CONSOLE接口 1路基于RS232/RS485的端子串口（3PIN）
USB	控制器	前面板一个USB3.0 OTG，TYPE A 前面板一个USB2.0 HOST，TYPE A接口板内留有USB2.0插针用于扩展
miniPCIe	接口	1路miniPCIe接口引入PCIE 1X信号用于连接miniPCIe设备/加密卡以及扩展WIFI6及4G
M.2（5G）	接口	PCIE及USB信号引入，支持4G/5G模块以及AI加速卡
TPM	TPM接口	SPI总线，20PIN接口
TF卡	TF卡接口	1路TF卡接口
SIM	SIM卡槽	2个SIM卡槽一个连接4G_miniPCIe 一个连接5G_m.2接口
FAN	插座	CPU及system风扇标准供电接口
电源	电源接口	默认 12V DC JACK 接口同时支持 220V 交流供电
GPIO	GPIO	除系统或LED外，内置1组8位的GPIO控制插针
RTC	RTC	电池供电RTC
Watchdog	Watchdog	外部独立硬件看门狗
CAN	信号	2路CAN信号
安装方式	整机	支持机柜上架、桌面安装方式
