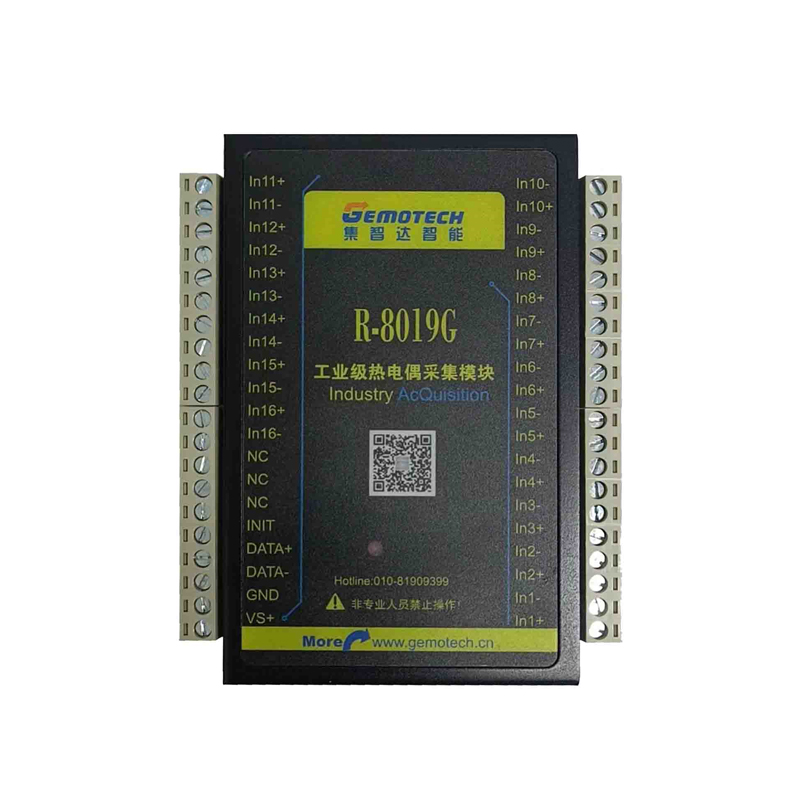

R-8019G

基于RS-485总线的16通道的热电偶采集模块

主要特点：
16通道差分输入可测量采集更多的温度点
24 位 sigma-delta ADC 提供高的精确度
内置 CJC冷端, 外部可直接连接热电偶传感器
支持断偶检测功能，热电偶断线后可检测到并输出特定值
金属外壳与导轨连接可接地，增强抗干扰能力
支持MODBUS以及ASCII两种协议，便于和主流PLC及上位机通信

产品型录

产品介绍
产品规格
档案下载

RemoDAQ-8019G 是一款基于RS-485总线的16通道的热电偶采集模块，相比于传统的8路热电偶采集模块有着更多的采集通道，精度及可靠性高。可广泛应用于钢化炉，注塑机，钢铁冶炼等长距离测温行业

主要特点：

16通道差分输入可测量采集更多的温度点
24 位 sigma-delta ADC 提供高的精确度
内置 CJC冷端, 外部可直接连接热电偶传感器
支持断偶检测功能，热电偶断线后可检测到并输出特定值
金属外壳与导轨连接可接地，增强抗干扰能力
支持MODBUS以及ASCII两种协议，便于和主流PLC及上位机通信

RemoDAQ-8019G

输入通道：16 路模拟量输入模块

输入类型：热电偶

输入类型：mV

热电偶类型：J,K,T,E,R,S,B,N

采样速率：10 次/秒（最快 41.6Hz）

带宽：15.7Hz

精确度：±0.1%

零漂移：0.5uV/℃

量程漂移：15ppm/℃

安装方式：导轨式

CMR@50/60Hz：150dB

NMR@50/60Hz：100dB

输入阻抗：3.3M Ohms

隔离电压：3000VDC

过电压保护：±51V

电源

输入：+10V ~ +30VDC

功耗：0.4W（24V）

温度：-30℃ ~ 75℃

湿度：5% ~ 90%，无凝露

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
