GNS-2418

产品型录

产品介绍
产品规格
档案下载

产品概述

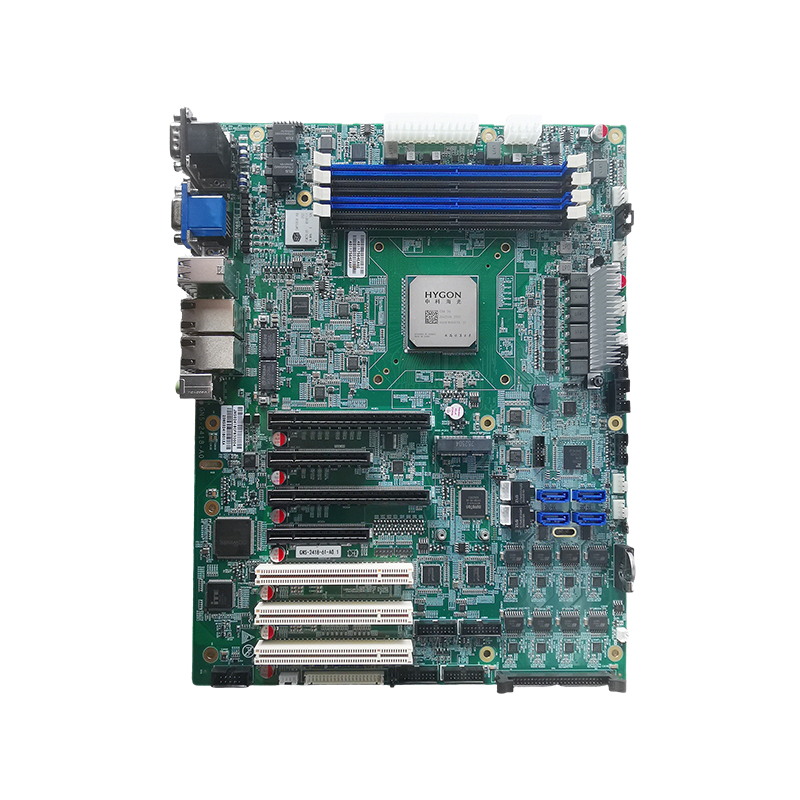

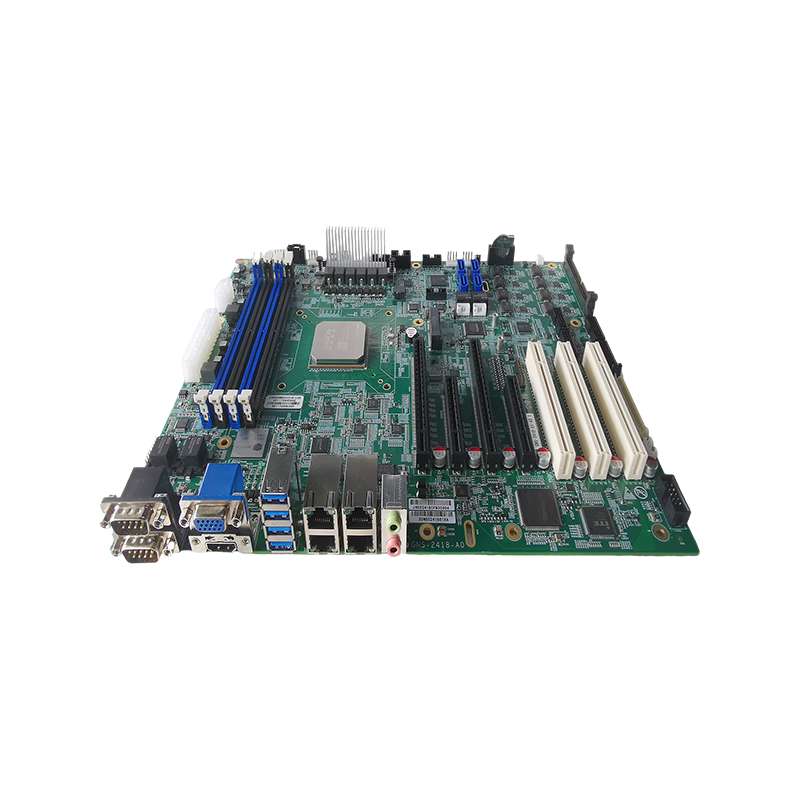

GNS-2418是集智达面向恶略环境(如轨交、电力等)工业现场应用而研发的工控主板。板载8个光电隔离的串口，板载4个光电隔离CAN口。产品采用海光高性能8/4核处理器，支持多PCle+PCI插槽及USB/COM/CAN等多种扩展端口。配合Windows及麒麟、统信等国产Linux系统，实现平台的稳定可靠运行。

可广泛应用于智能交通，智能制造，工业控制，机械自动化，通讯及信息采集场合，满足Q/CR573-2023/CRCC认证标准。

国产化计算平台：

基于海光3350/3330/3250 CPU,内置国密算法

8/4核16/8线程3.0GHz

完美适配Windows及麒麟、统信等国产Linux系统

为严苛环境设计：

工业级元器件选择，长期稳定运行

抗恶劣环境

满足轨交行业CRCC认证标准

丰富扩展接口：

板载8个光电隔离的RS-232/422/485串口

板载4个光电隔离CAN 2.0/FD口

处理器	海光 3350/3330/3250 CPU8/4 核 16/8 线程 3.0GHz
内存	4 根 DDR4 内存插槽支持最大 128G UDIMM 内存支持 DDR4 3200/2666/2400/2133 ECC 内存
扩展插槽	3 个 32 位 PCI 插槽（可选） 2 个 PCIe x16 插槽（x8，x4 信号） 2 个 PCIe x8 插槽（x4，x1 信号）
存储设备	4 个 SATA 接口
电源	ATX 24+8PIN 电源输入
海岸线 I/O 接口	1 个 VGA 1 个 HDMI 2 个光电隔离 CAN 2.0/FD 4 个 USB 3.0 4 个千兆 RJ45 以太网口 1 组音频 line in / line out
内置 I/O 接口	1 个 PS2 口 1 个 Mini PCIe 8 个 USB 3.0 pin header 1 个 LVDS 8 个 RS232/485/422 光隔离串口（50pin 牛角连接器引出） 2 个光电隔离 CAN 2.0/FD（可选）（4pin 连接器引出） 16 路 GPIO
显示	集成显示控制器，1 个 VGA+1 个 HDMI VGA 支持 1920 x 1080 分辨率 HDMI 支持 3840 x 2160 分辨率板内 LVDS pin header
尺寸	ATX 标准 304mm x 244mm
工作环境	工作温度：-5℃ ~55℃ 存储温度：-40℃ ~85℃ 湿度：5%~93%@40℃（无凝结）震动工作时 1Grms存储时 2Grms
其他环境适应性	满足 Q/CR 573-2023 型式试验要求 EMC 满足 GBT 24338.5-2018 Class A 级标准雷电防护满足 TB 3498-2018 的 1 级标准
操作系统	支持 Windows 及麒麟、统信等国产 Linux 系统
看门狗	支持看门狗功能，1~255 秒可编程
