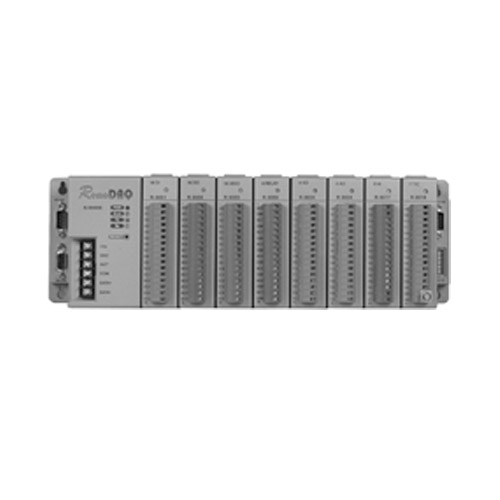

RemoDAQ-9428/9828

4/8槽以太网软逻辑控制器

主要特点

-   10/100 Base-T以太网接口
-   内建Modbus/RTUServer
-   支持Modbus/TCP Clinent
-   支持Modbus/RTU主站
-   支持Modbus/RTU从站
-   IEC-61131-3标准
-   支持LD/FB/SFC/IL/ST语言
-   跨语言编译编程
-   8个I/O槽，可支持达128个本地I/O点
-   支持AI/AO/DI/D0/计数器功能块

产品型录

产品介绍
产品规格
档案下载

RemoDAQ-9428/9828是一款具有以太网接口的软逻辑控制器。它提供包括Modbus/TCP Server、Modbus/TCP Clinent以太网功能。这样用户就可以方便的完成基于以太网架构的编程。

系统

CPU	16位微处理器
存储器	1.5MB Flash，640KB SRAM(17KB 用于电池备份)
操作系统	ROM-DOS
实时时钟	有
看门狗定时器	有
COM1	RS-232/485
COM2	RS-485
COM3	RS-232（预留）
COM4	RS-232/485
通讯协议	Modbus/RTU和Modbus/TCP
I/O能力	4槽（9428），8槽（9828）
状态显示	电源、CPU、通讯和电池
CPU功耗	1.0W

隔离保护

电源输入	3000 VDC
通讯	2500 VDC（仅COM2）

网络

介质	RS-485（2线）
速率（bps）	9600，19200，38400bps
节点	每个串口可连接31个多站系统
介质	以太网（RJ-45）
速率（bps）	10/100 Base-T

电源

- 未调理+10～+30VDC
- 电源反向保护

机械特性

外壳	KJW塑料，带安装配件
插入式螺丝端子块	导线线径0.5m㎡到2.5m㎡,1-#12或2-#14到#22AWG

环境

工作温度	-20～70℃
储存温度	-25～85℃
湿度	5～95 ％无凝结

（本产品新旧包装混发）

订货信息

- RemoDAQ-9428 4槽以太网软逻辑控制器
- RemoDAQ-9828 8槽以太网软逻辑控制器
