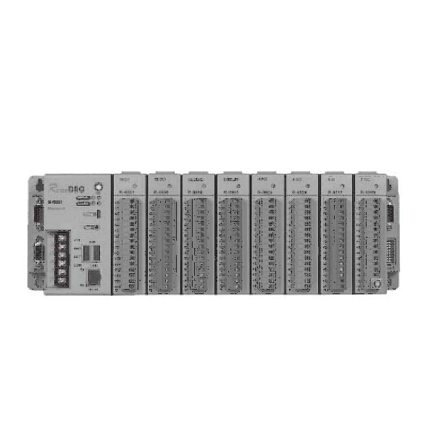

RemoDAQ-9431/9831/9438/9838

· 10/100/1000Base-T Ethernet interface
· Self-built Modbus /RTU Server
· Support Modbus /TCP Client
· Support Modbus /RTU Master and Slave Station
· Support Ethernet Isagraf(R-9438/9838)
· IEC-61131-3 Standard
· Support LD/FB/SFC/lL/ST language
· Linux operating system, C language programming(R-9431/9831)
· 4/8 slots for use with I/O, Basic unit can support up to 64/128 of the I/O points
· Support for Al/AO/Dl/DO counter function block
· Through a serial port extension 32 extension units, Each extension unit can support
64/128 of the I/O points

产品型录

  • 产品介绍
  • 产品规格
  • 档案下载

Introduction
RemoDAQ-9431/9831/9438/9838 is a soft logic controller with Ethernet interface.
It also provides Ethernet function, including the Modbus/TCP Server, Modbus/TCP
Client and Ethernet. Then users can facilitate rapid completion based on Ethernet
architecture programming.

Specifications

·CPU

Atmel SAMA5D36 Cortex a5, 536MHz

·Storage

512M Nand Flash256KB SRAM (Save the data one month)

·Operating system

Linux

·Real-time clock

enabled

·Built-in watchdog

enabled

·COM1 RS

RS-232/485

·COM2

RS-485

·COM3

RS-232

·COM4

RS-232/485

·communication protocol

Modbus/RTU and Modbus/TCP

·I/O capacity

4 slots(9431/9438)8 slots(9831/9838)

·Status display

Power, CPU, Communication and battery

·CPU power consumption

3.0W

Field bus

CAN field, 2 interface, Support 2.0A/2.0B Protocol



Isolation protection



·power input

3000 VDC

·communication

2500 VDC(except COM3)



Ethernet

1*10/100/1000Mbps,

1*10/100Mbps

VGA display

·Resolution

1024*768

Extension

Through 485 extensible 32 slave units of 4/8 slots



Software support

·Isagraf Soft logic programming

·C language programming





Power



·Unconditioned +10~+30VDC

·Reverse power protection

Mechanical features

 ·Coating

 KJW plastics, with install accessories



·Plug-in screw

terminator

Plug-in screw terminator: diameter of

lead 0.05mm2 to 2.5mm2, 1-12 or 2-

14 to 22AWG



Environment



·Operating temp

-4085

·Storage temp

-4085

·Humidity

595 non-condensing







Order information



·RemoDAQ-9431

4 slots Ethernet programmable

controller

·RemoDAQ-9438

4 slots Ethernet programmable

controller

·RemoDAQ-9831

8 slots Ethernet soft logic

controller

·RemoDAQ-9838

8 slots Ethernet soft logic

controller
