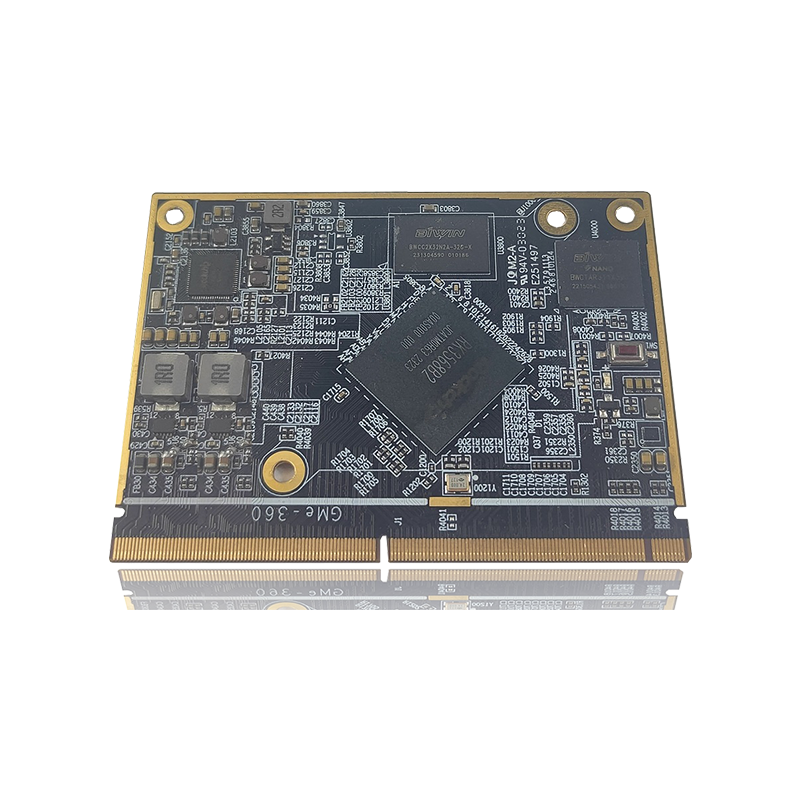

GME-3601

集智达推出基于瑞芯微RK3568处理器的MXM接口核心板GME-3601，搭载4颗22纳米 Cortex A55 SOC，主频可达2.0GHz,内置NPU，GPU，VPU，可支持多种视频接口以及视频的编解码，同时也可以进行轻量的AI运算，可搭配我司GEA-6511底板进行基本功能调试，便于进行定制化方案的开发与实现，可应用于物联网、工业自动化、智能零售、网络安全等多个行业领域。

产品型录

产品介绍
产品规格
档案下载

产品特点

搭载ROCKCHIP 64位Soc RK3568，主频可达2.0GHz

核心板基于SODIMM 314P MXM接口，可以灵活定制行业方案

内置NPU，支持0.8T算力，支持INT8，INT16，FP16运算

内置Mali-G52 GPU,可实现MIPI-CSI，MIPI-DSI，HDMI2.0，EDP多种显示接口

内置加密运算芯片，可支持国密算法的应用

丰富的I/O接口，板载双路RGMII，2XPCIE3.0 以及可灵活配置的IO接口。

兼容性强，稳定可靠，整体尺寸只有82 X 60mm

支持Debian11、Ubantu、Centos、以及国产麒麟、鸿蒙系统

主控芯片	RK3568B2
CPU	Quad-core Cortex-A55 up to 2.0GHz
GPU	Mali-G52 GPU 支持OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 内嵌2D加速硬件
VPU	支持4K 60fps H.265/H.264/VP9视频解码支持1080P 100fps H.265/H.264视频编码支持8M ISP，支持HDR
NPU	支持0.8T算力，支持INT8，INT16，FP16运算
Storage	8/16/32GB
DC IN	12V/2A
系统	Android、Linux
PCB规格	6层板
核心板尺寸	82mm×60mm
接口类型	SODIM 314P（MXM 3.0）
