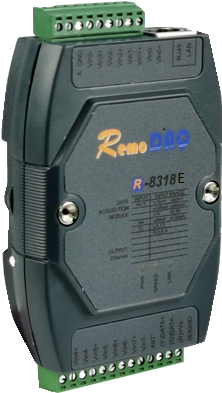

R-8318E

支持 10/100M 以太网

支持 Modbus/TCP

输入电压：+10V~+50VDC

功耗：1.8W

温度：-20℃~70℃

湿度：5%~90%，无凝露

模拟量输入

通道数：8(单通道量程可设)

输入类型：mV，V，mA

热电偶类型：J，K，T，E，R，S，B，N

采样速率：10次/秒

精度：±0.1%

零点漂移：20uV/℃

满量程漂移：25ppm/℃

输入阻抗：7M Ohms

隔离：3000VDCLED指示

数量：3

网络指示灯：1个

电源指示灯：1个，黄，常亮

工作指示灯：1个，绿，闪烁，1Hz
