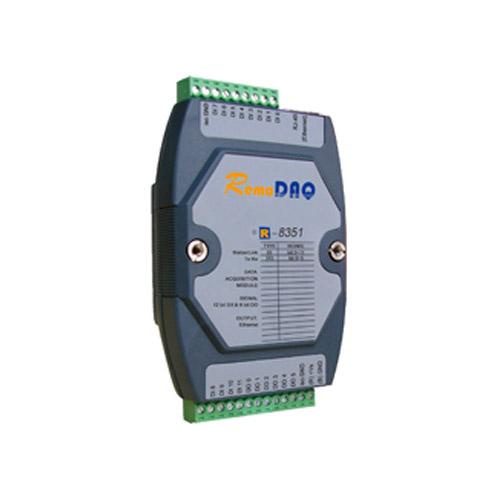

R-8351

16路带计数器的隔离数字量I/O模块

主要特点

-    通道 16
-    I/O类型 12DI/2DO/2计数器
-    光隔离 2000VRMS
-    功耗 2W(典型)

产品型录

产品介绍
产品规格
档案下载

16路带计数器的隔离数字量I/O模块

通道	16
I/O类型	12DI/2DO/2计数器
数字量输入	干接点：逻辑电平 0：接地逻辑电平 1：开路湿接点：逻辑电平 0：＋3V（最大）逻辑电平 1：＋10V～30V 提供3KHz计数（32位）提供高-低或低-高锁存
数字量输出	集电机开路30V（200mA最大负载）提供脉冲输出（5KHz）
光隔离	2000VRMS
计数器	最大计数：4，294，967，285（32位）输入频率：4500Hz max.（计数器模式）隔离电压：2000VRMS 模式：计数器，频率
功耗	2W(典型）

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册 R-8351			下载
