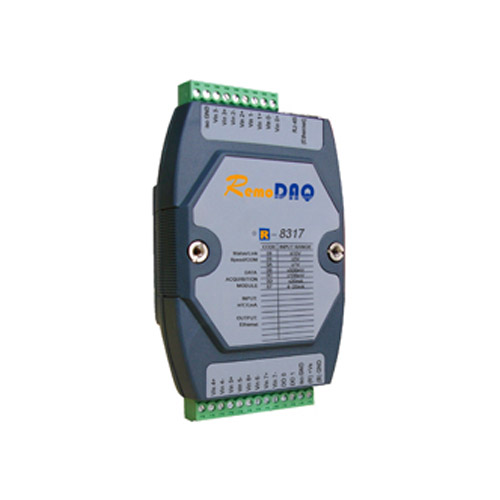

R-8317

8路带DO的模拟量输入模块

主要特点

-    模拟量输入
-    有效分辨率   16位
-    通道               8路差分
-    输入类型       mV，V，mA
-    输入范围       ±150mV，±500mV，±5V，±10V，0-20mA，4-20 mA
-    隔离电压       2000VDC

产品型录

产品介绍
产品规格
档案下载

8路带DO的模拟量输入模块

主要特点

（本产品新旧包装混发）

模拟量输入

有效分辨率	16位
通道	8路差分
输入类型	mV，V，mA
输入范围	±150mV，±500mV，±5V，±10V，0-20mA，4-20 mA
隔离电压	2000VDC
故障和过压保护	可承受电压± 35V
采样速率	10采样点/秒
输入阻抗	20MΩ
带宽	13.1Hz@50Hz 15.72Hz@60Hz
精度	±0.1%
零漂移	±6μV/℃
满量程漂移	±25ppm/℃
CMR@50/60Hz	92db

数字量输出

通道	2，集电极开路30V 100mA负载
光隔离	2000 V RMS

电源

电源要求	未调理10 ～ 30 VDC
功耗	2W
内置看门狗定时器	是

订货信息
- R-8317 8路带DO的模拟量输入模块

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册 R-8317			下载
