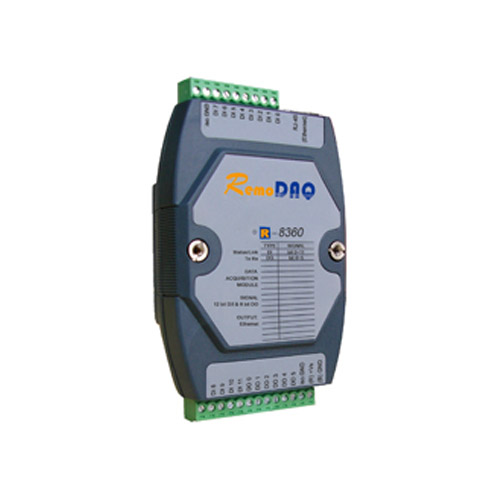

R-8360

6路DI/6路继电器模块

主要特点

-    通道 12
-    I/O类型 6路继电器 & 6路 DI
-    光隔离 2000VRMS
-    功耗 2W(典型)

产品型录

产品介绍
产品规格
档案下载

6路DI/6路继电器模块

通道	12
I/O类型	6路继电器 & 6路 DI
继电器输出(A型）	接触功率： AC：120V@0.5A DC：30V@1A 击穿电压：500VAC（50 / 60Hz）继电器接通时间： 7毫秒继电器断开时间： 3毫秒总切换时间： 10毫秒绝缘电阻：最小1000MΩ（500VDC）提供脉冲输出（3KHz）
数字量输入	干接点：逻辑电平 0 ：接地逻辑电平 1 ：开路湿接点：逻辑电平 0：＋3V（最大）逻辑电平 1：＋10V到30V 提供3KHz计数（32位）提供高-低或低-高锁存
光隔离	2000VRMS
功耗	2W(典型）

订货信息
- R-8360 6路隔离数字量输入和6路继电器模块

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
2015/02/11	用户手册R-8360			下载
