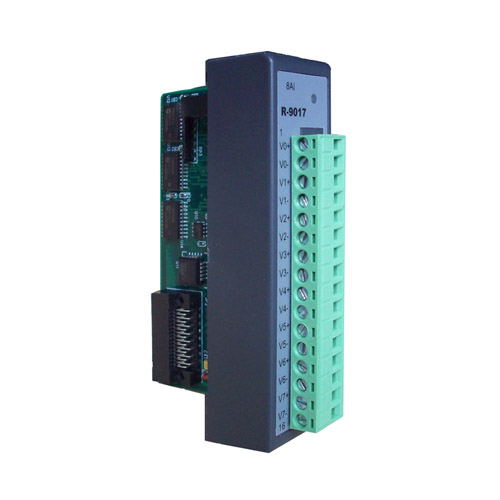

R-9017

8路模拟量输入模块

主要特点

-   通道 8路差分
-   有效分辨率 16 位
-   输入类型 mV,V, mA
-   输入范围 ±150 mV, ±500mV,±1V, ±5V, ±10V,± 20mA
-   隔离电压 3000VDC
-   故障和过压保护承受电压±35V
-   采样速率 10采样点/秒(总共)

产品型录

产品介绍
产品规格
档案下载

8路模拟量输入模块

主要特点

（本产品新旧包装混发）

通道	8路差分
有效分辨率	16 位
输入类型	mV，V， mA
输入范围	±150 mV， ±500mV，±1V， ±5V， ±10V，± 20mA
隔离电压	3000VDC
故障和过压保护	承受电压±35V
采样速率	10采样点/秒(总共)
输入阻抗	2MΩ
带宽	13.1 Hz @ 50 Hz，15.72Hz @ 60 Hz
精度	±0.1%
零飘移	±1.5 mV /℃
满量程漂移	±25PPM/℃
CMR@50/60Hz	92db
功耗	1W(典型)；1.25W
模拟量信号范围	±15V

注意：任意两个输入端之间的电压不可超过±15V

订货信息
- R-9017 8路模拟量输入模块 -mV，V， mA
